Introduction

Generate Process - Approval Process function will generate a generic approval process flow together with complementing forms and userview menu items into your existing app from a form.

The form intended to be generated from should be an application/request form.

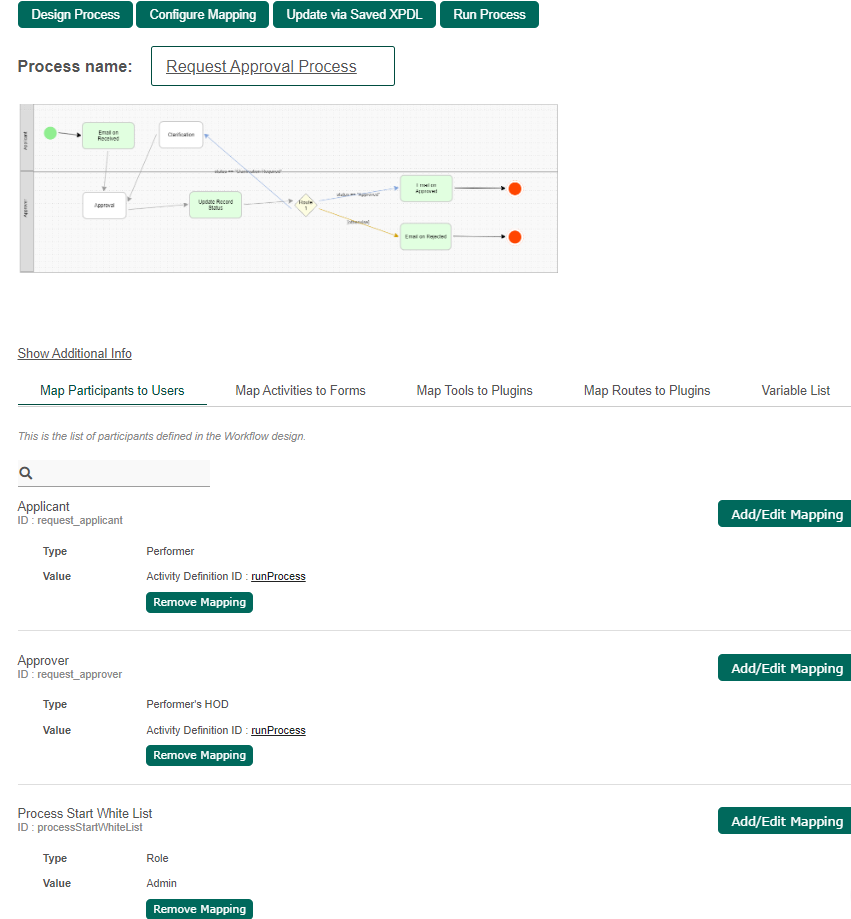

Figure 1: Approval process flow template

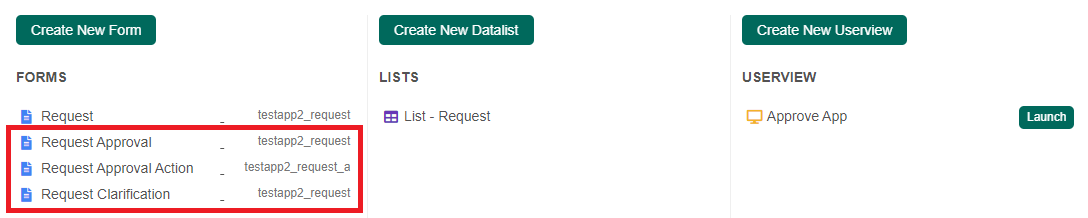

Figure 2: Screenshot highlighting the series of form that is created to complement the process flow

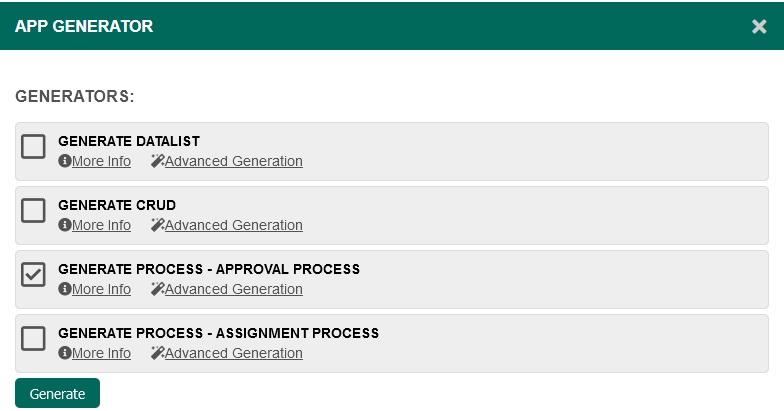

Figure 3: Screenshot showing Generate Process - Approval Process plugin in Generate App function

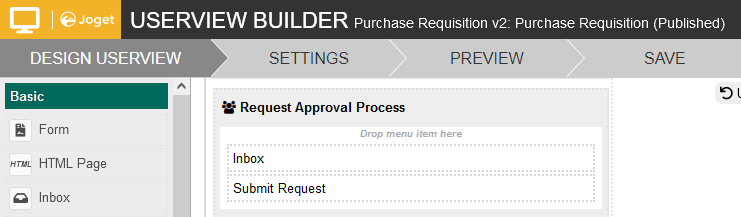

Figure 4: Generator adds a new category in the userview after generating Approval Process

Generate Process - Approval Process Properties

Options

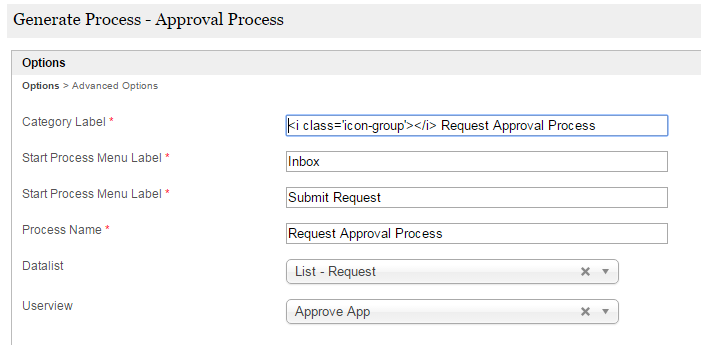

Figure 5: Options Properties

Name	Description
Category Label	Define the category label to be appended into the target Userview below. (see Figure 5)
Start Process Menu Label	Define the Process Start menu label to be created under the new category defined in Category Label above.
Process Name	Process Name Label
Datalist	Choose the Datalist to be associated with the Datalist Inbox that will be created in the new Userview category. If this is left empty, Create New Datalist Options will be available in Advanced Options

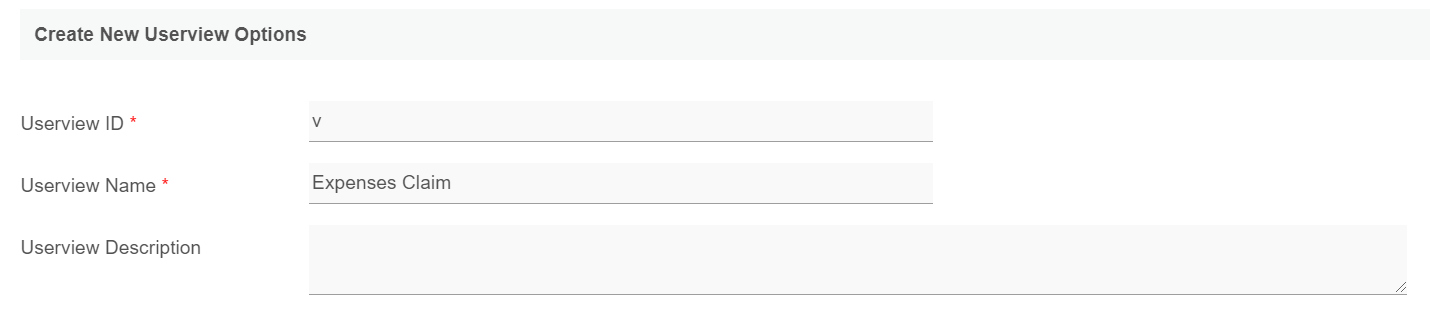

Userview	Choose the Userview to append the new Userview category into. If this is left empty, Create New Userview Options will be available in Advanced Options

Advanced Options

Create New Datalist Options

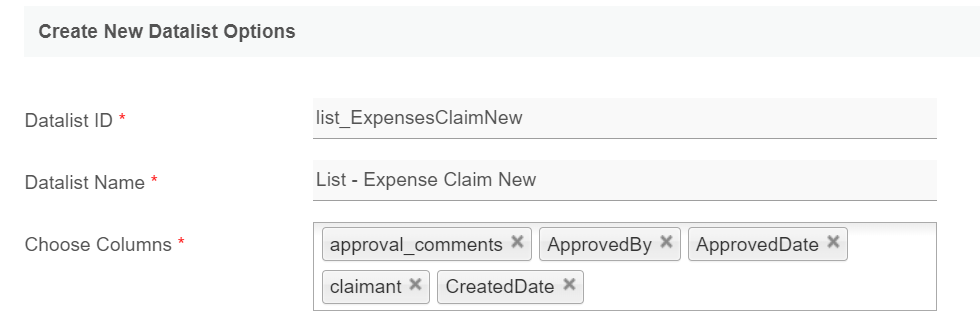

Figure 6: Options for the new datalist. Only shown when no datalist is selected in the previous options section.

Name	Description
Datalist ID	Datalist ID
Datalist Name	Datalist Name
Choose Columns	Select Columns to be displayed in Datalist. AutoComplete enabled. Type column name to display filtered selection.
