Definition

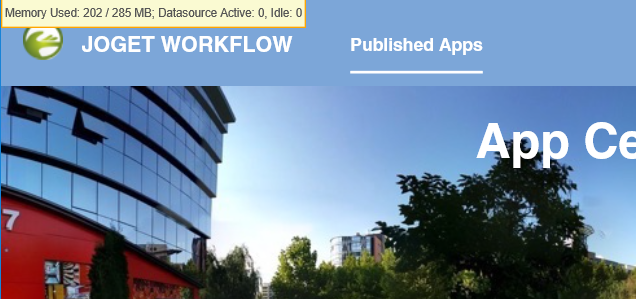

Figure 1: Java VM Stats and Database Connection Pool Status
Java VM Stats and Database Connection Pool Status are essential piece of information that can help administrator to manage the platform health and performance. The database connection pool gives the administrator and app designer vital information on whether there's unclosed connection or leakages of similar kind.

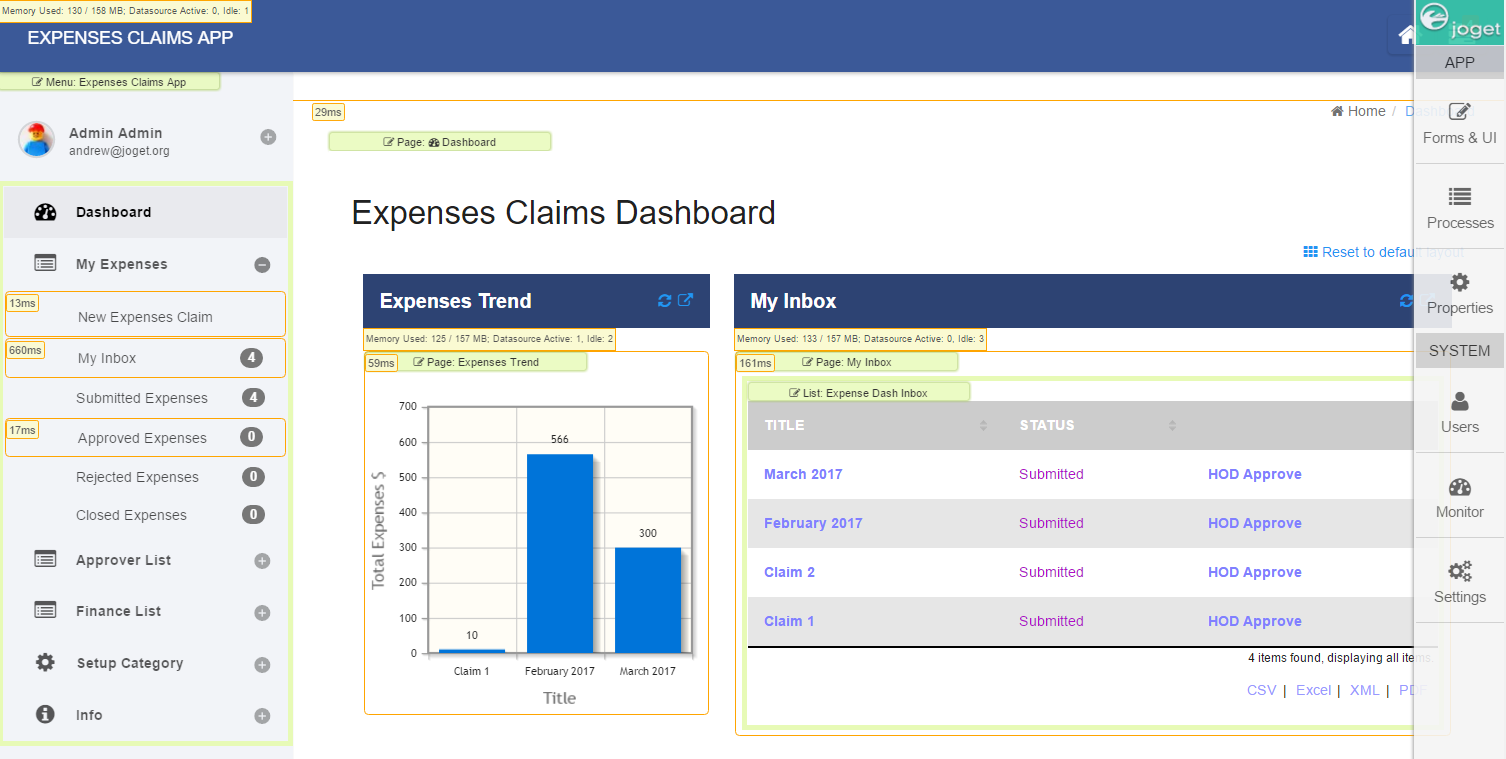

Figure 2: Statistics on elements exceeding thresholds
Figure 3: Specific element's analysis view
Upon mouseover of a highlighted element, details of affected method calls and/or SQL statements will be displayed.

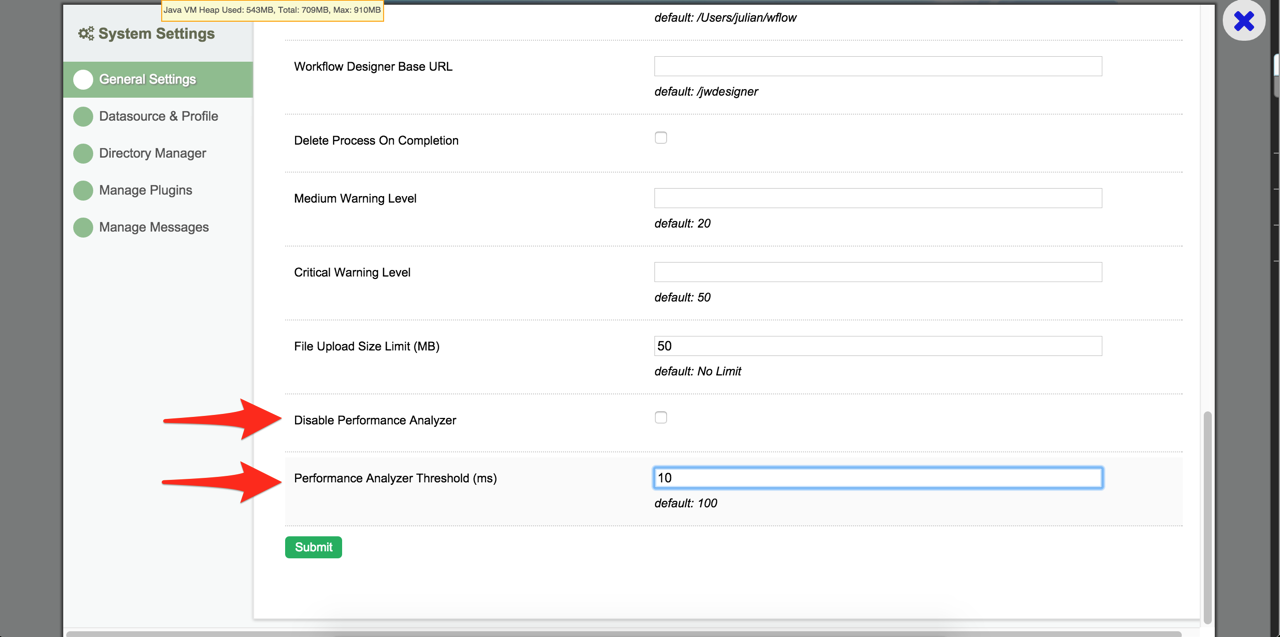

Figure 4: System Settings
By default, the Performance Analyzer is enabled with a threshold of 100ms. This setting can be overridden in the System Settings.
