Introduction
Figure 1: Assignment process flow template

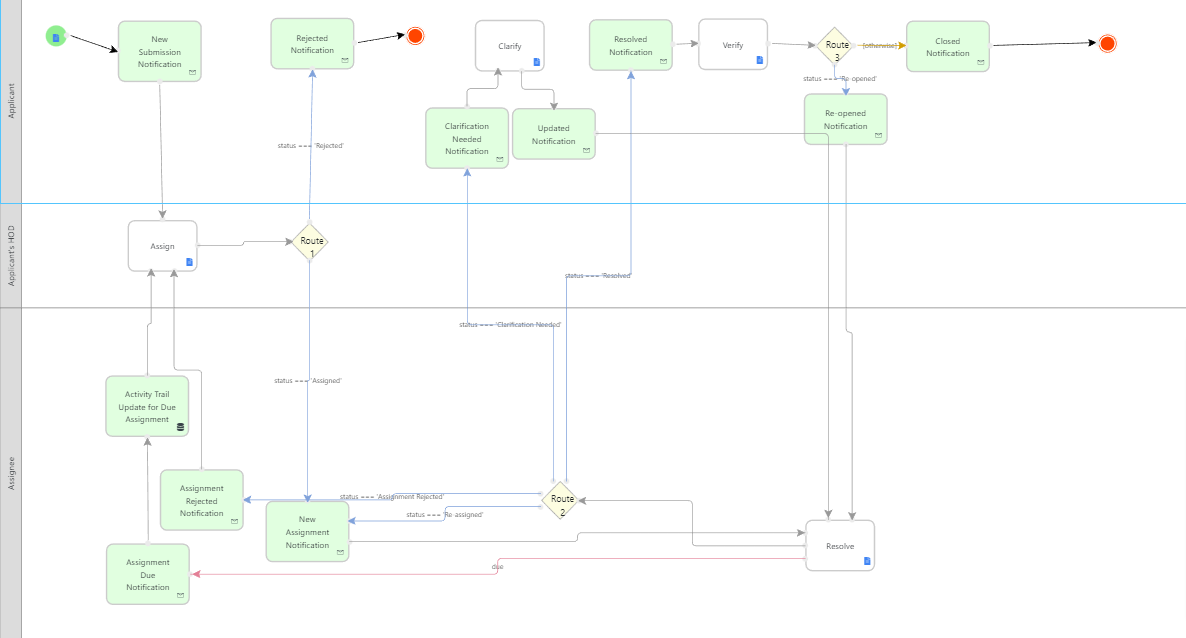

Figure 2: Assignment process flow diagram

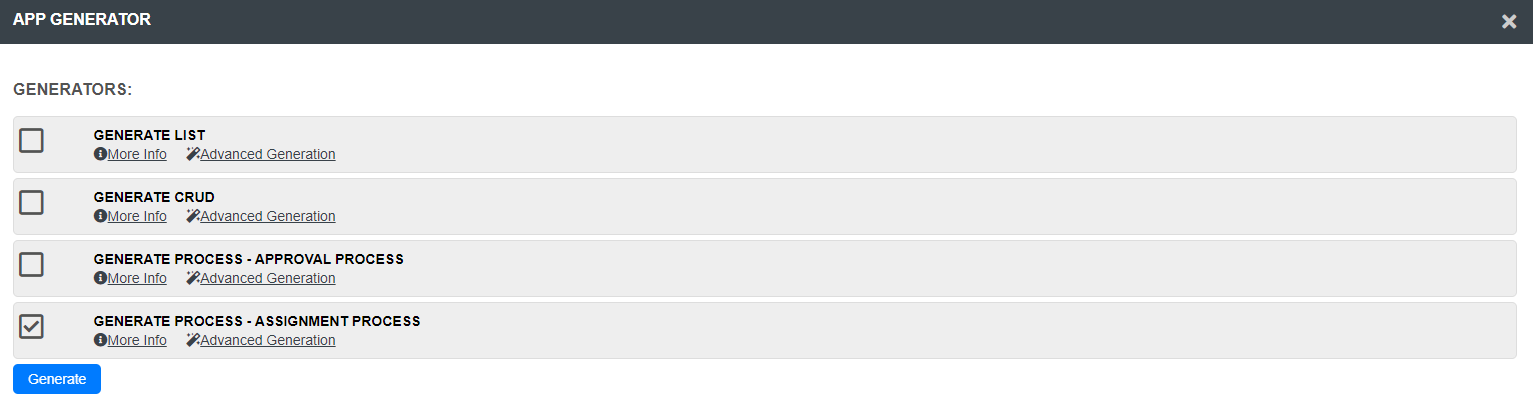

Figure 3: Screenshot showing Generate Process - Assignment Process plugin in Generate App function

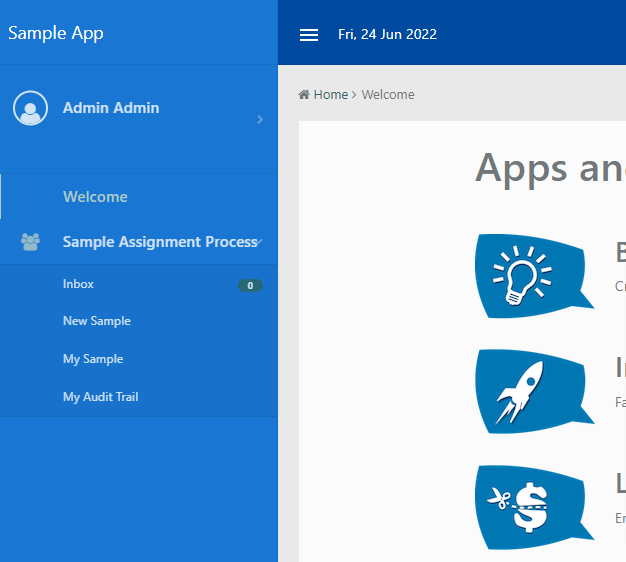

Figure 4:UIExample
Generate Process - Assignment Process Properties
Options

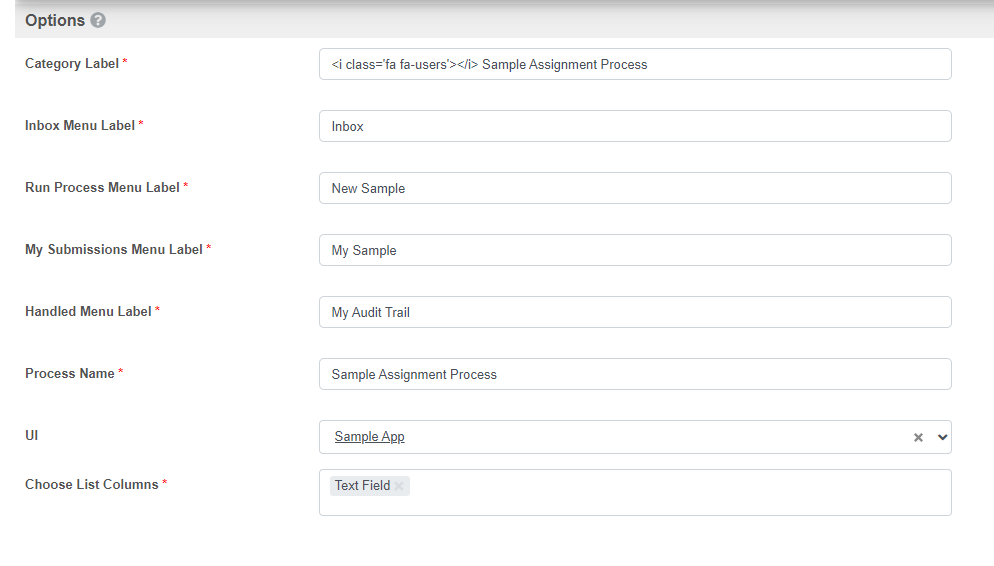

Figure 5: Options Properties
| Name | Description |
|---|---|
| Category Label | Define the category label to be appended into the target UI below. (see Figure 5) |
| Inbox Menu Label | Inbox Menu Label |
| Run Process Menu Label | Run Process Menu Label |
| My Submissions Menu Label | My Submissions Menu Label |
| Handled Menu Label | Handled Menu Label |
| Process Name | Process name label |
| UI | Choose the UI to append the new UI category into. |
| Choose List Columns | Based on the created fields in your form, choose the columns that you wish to put them into the List generated. |

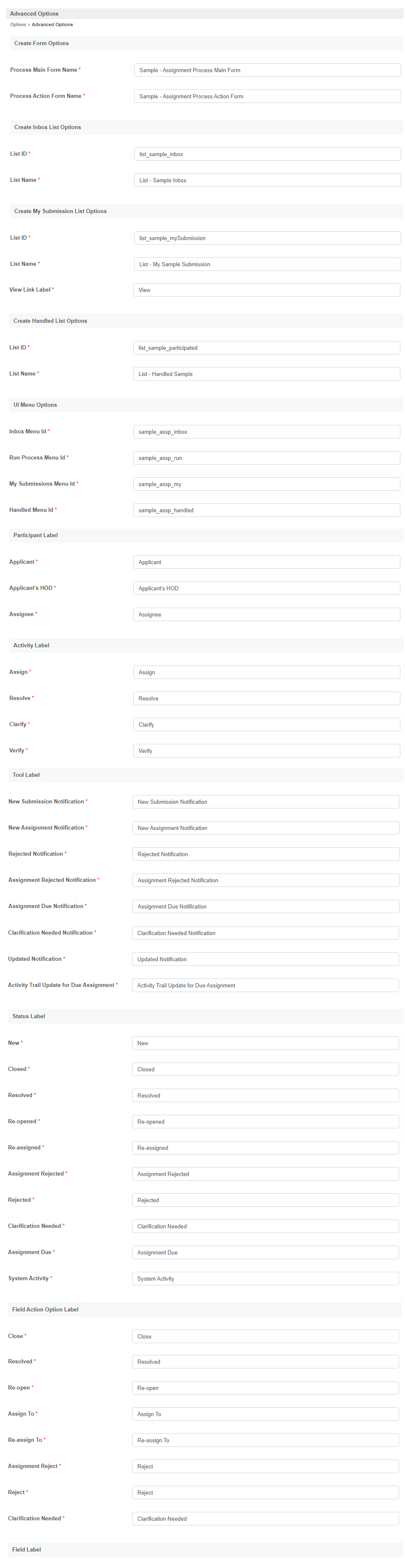

Figure 6: Generate Process - Assignment Process Properties - Advanced Options - Customizing labels

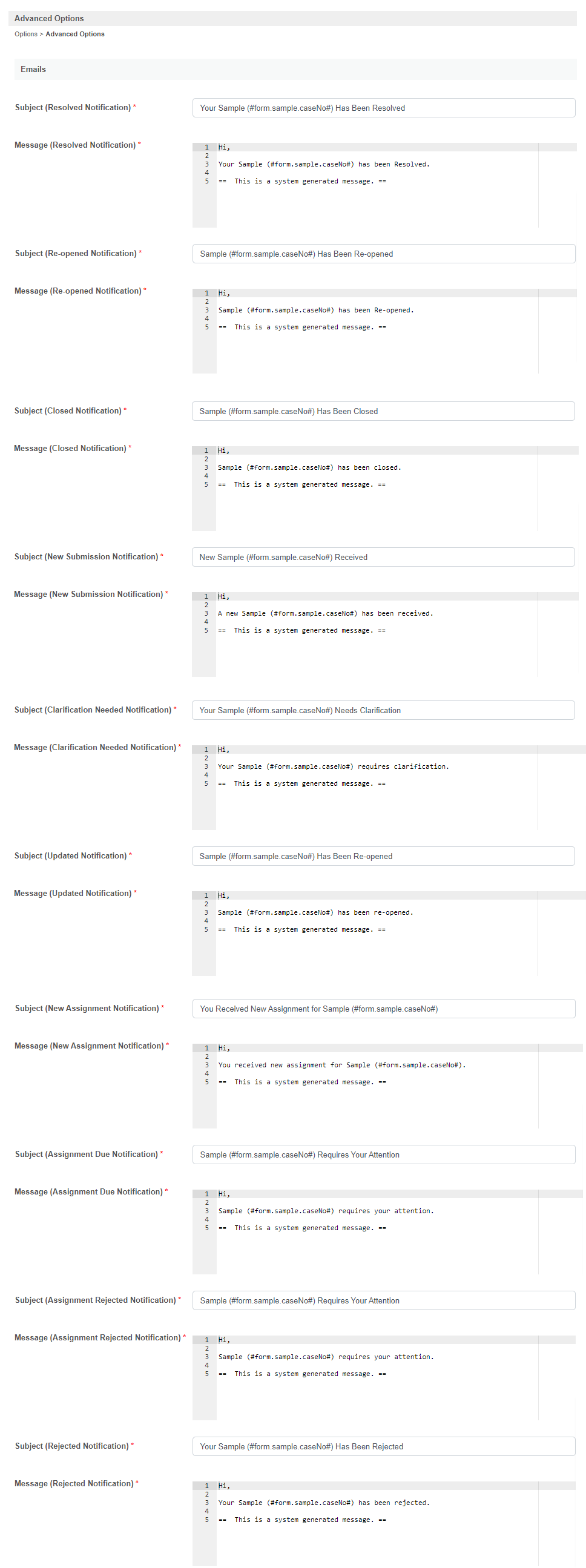

Figure 7: Generate Process - Assignment Process Properties - Advanced Options - Customizing labels (continued)
