Introduction
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

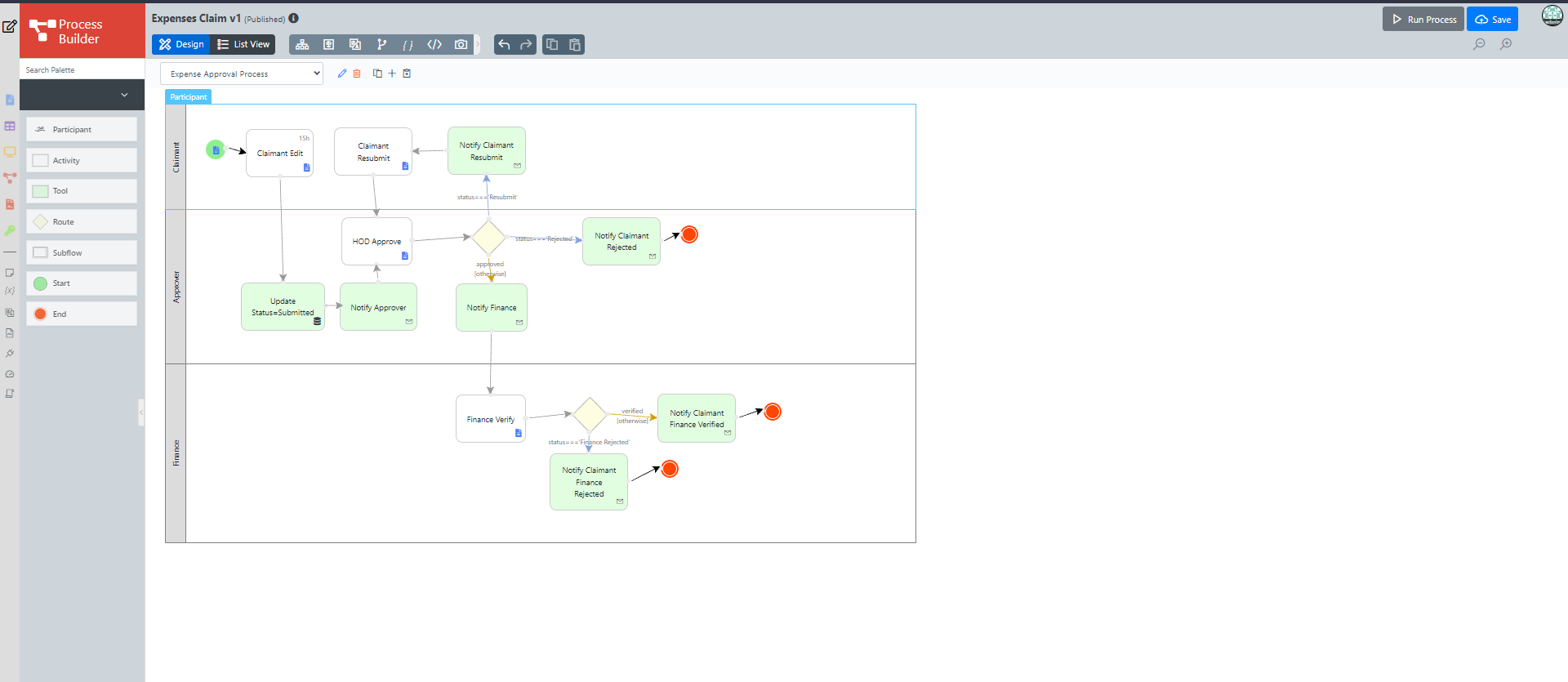

Figure 1: Process Builder Design For Expenses Claims App
In Joget DX8 Process Builder, the following are new features: List View & Mapping Tab
List View

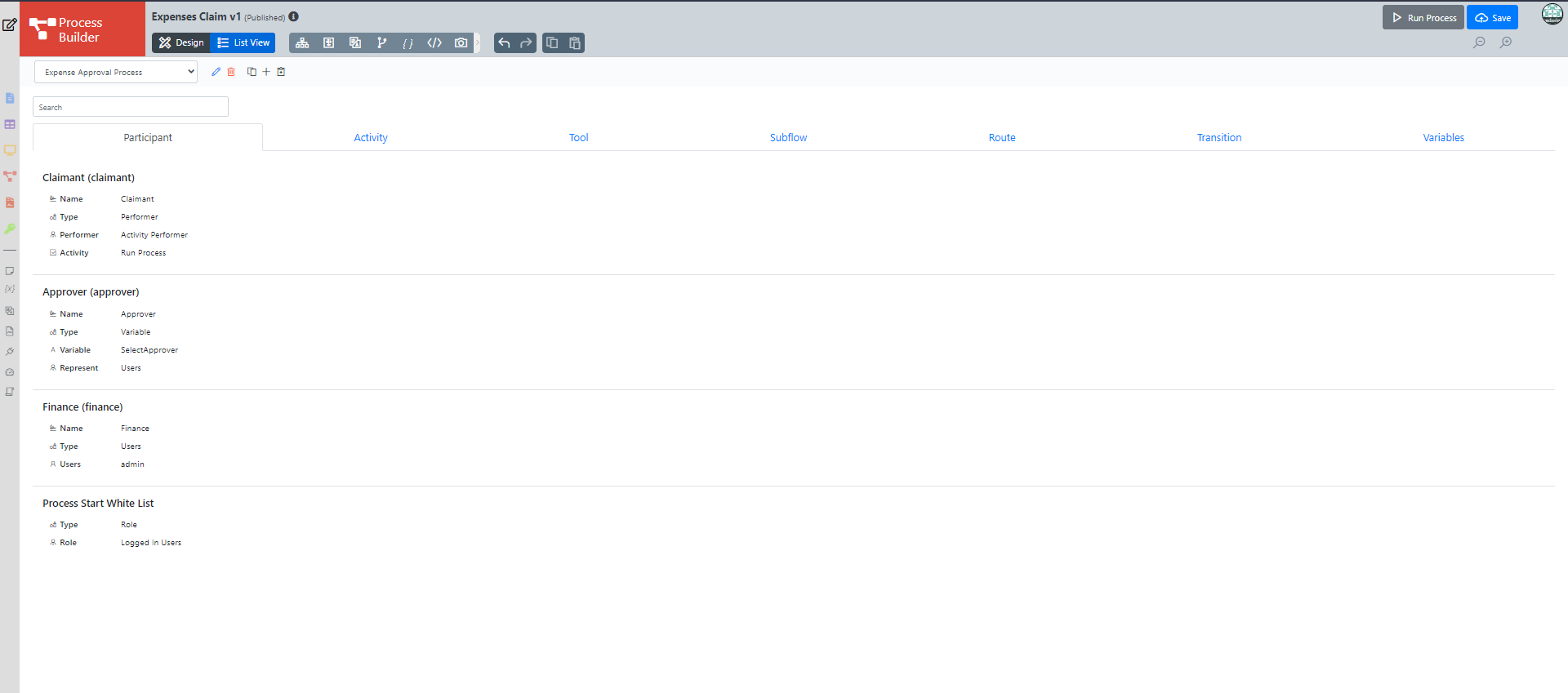

List View is a new feature in Joget DX8. List View allows one to view all the elements that have been placed inside the Process Builder, while also letting one to configure the properties to each of the element inside the process.
Figure 2: Process Builder List View For Expenses Claims App
Mapping Tab
The mapping tab is a new feature in Joget DX8. The Process Mapper feature from Joget DX 7 has now been integrated into the Process Builder, letting one configure the mappings of the elements inside a process within the same screen, instead of a separate configuration screen in previous versions.
Figure 3: Mapping tab for a participant mapping
Elements available
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

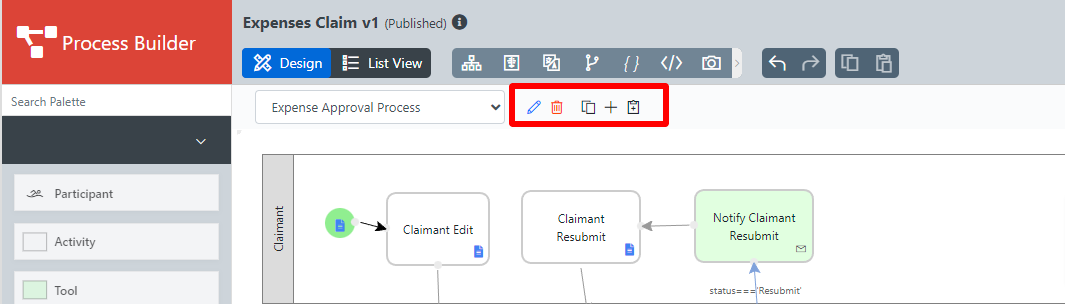

The Tools buttons are used to edit the process.
| Name (From Left to Right) | Description |
|---|
 Edit
| Edit the current process |
 Remove
| Remove the current process |
 Clone
| Clone the current process |
 Add New
| Add new process |
 Copy Process Definition ID to Clipboard
| Copy the process definition ID to the clipboard for Hash Variables that required process definition ID |
Participants
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

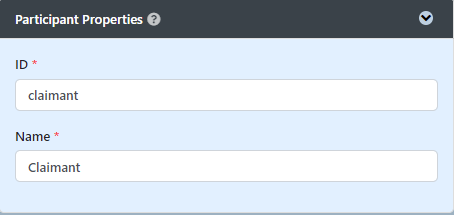

The Participant node is used to declare a new participant swimlane to represent a role/person/entity (e.g. Claimant). Please see Map Participants to Users for more information about the mappings.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Description License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
|---|
| ID | Participant ID License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Participant Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Activity
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Activity node is used to be mapped to Form, to be used to interact with human participant, as part of the process flow. Please see Map Activities to Forms for more information about the mappings.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Description License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
|---|
| ID | Activity ID License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Activity Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
| Incoming transition treatment type. (Only appear when there are two transitions mapped into an activity) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
| Outgoing transition treatment type. (Only appear when there are two transitions mapped from an activity) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
Deadlines
License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Multiple Deadlines can be set for each activity.
Learn about Deadlines and Escalations. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Limit License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | SLA Limit for the activity. Number is expected in this field. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

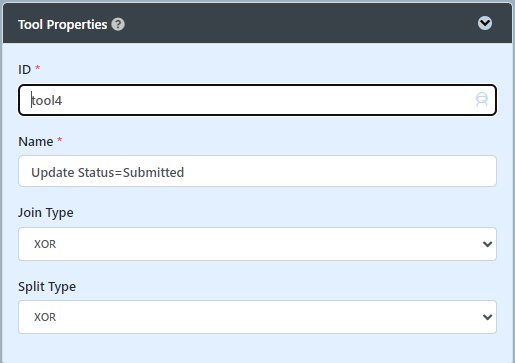

Tool node is used to be mapped to Process Tool plugin, to trigger/achieve certain functionality programmatically, as part of the process flow. Please see Map Tools to Plugins for more information about the mappings.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Description License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
|---|
| ID | Tool ID License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Tool Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
| Incoming transition treatment type. (Only appear when there are two transitions mapped into a tool) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
| Outgoing transition treatment type. (Only appear when there are two transitions mapped from a tool) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
Route
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

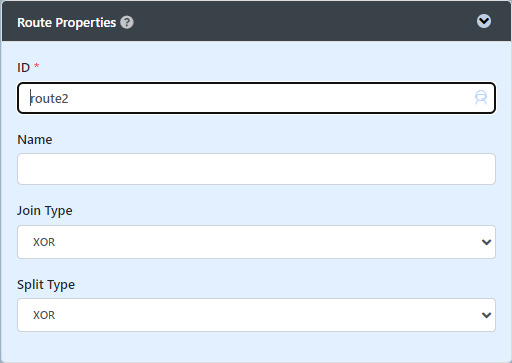

Route node is used to determine the flow of the process flow.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Description License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
|---|
| ID | Route ID License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Route Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
| Incoming transition treatment type. (Only appear when there are two transitions mapped into a route node) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
| Outgoing transition treatment type. (Only appear when there are two transitions mapped from a route node) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
Subflow & Deadlines
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

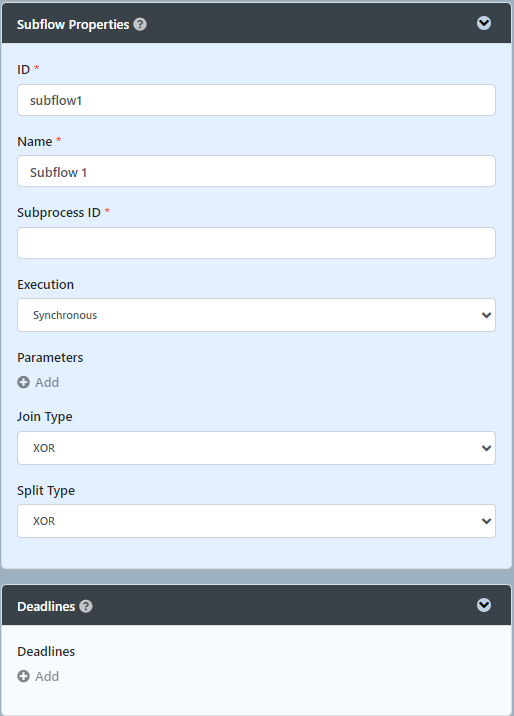

Subflow node is used to trigger the start of another process under the same App.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Description License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
|---|
| ID | Subflow ID License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Subflow Name License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Subprocess ID License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Process ID of the Subflow License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Execution License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Synchronous or Asynchronous execution. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Parameters License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Workflow variable(s) to be passed over to the Subflow. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
| Incoming transition treatment type. (Only appear when there are two transitions mapped into a subflow) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
| Outgoing transition treatment type. (Only appear when there are two transitions mapped from a subflow) - AND
- AND operator, if both transitions are true, the result is true, else the result is false if one transition is false.
- XOR
- XOR operator, if either of the transitions is true, then the result is true, else if both the transitions are true, then the result is false.
|
Deadlines
License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. | Multiple Deadlines can be set. This is only applicable when Subflow is set to Asynchronous execution. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. License Error The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license. |
Transition

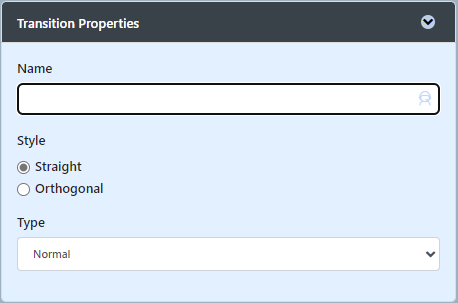

Transitions are used to connect the nodes in a process.
| Name | Description |
|---|
| Name | Transition name |
| Style | Transition style |
| Type | Transition type - Normal
- Conditional
- Otherwise
- Exception
|
Start
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
node denotes the start of the process flow.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
End
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
End node denotes the end of the process flow.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Keyboard Shortcut Keys
Shortcut Key | Description |
|---|
| Ctrl + S | Save Builder |
| Ctrl + C | Copy Element |
| Ctrl + V | Paste Element |
| Ctrl + Z | Undo |
| Ctrl + Shift + Z | Redo |
Demo Apps, Tutorial and Plugins from Joget Marketplace
Do try out the many free apps, tutorials and plugins for Joget Datalist elements.
