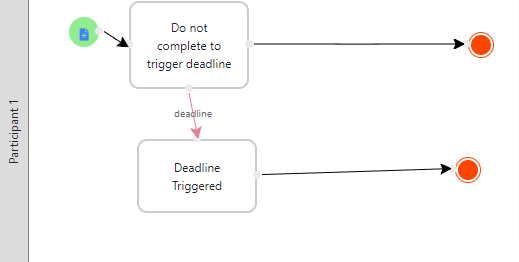

Figure 1: Workflow Design with an activity "Deadline Triggered" that will be invoked when the Deadline is triggered
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

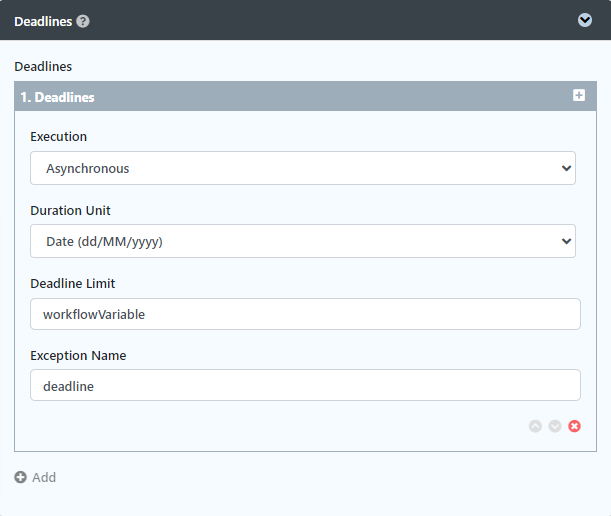

Figure 2: Setting up the Deadline parameter
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Edit the first activity, "Do not complete to trigger deadline" to add a Deadline as shown in the figure above. Set the "Duration unit" to "Date (dd/MM/yyyy)" and "Deadline limit" to the name of Workflow Variable. In this example, the Workflow Variable is named as "workflowVariable".
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

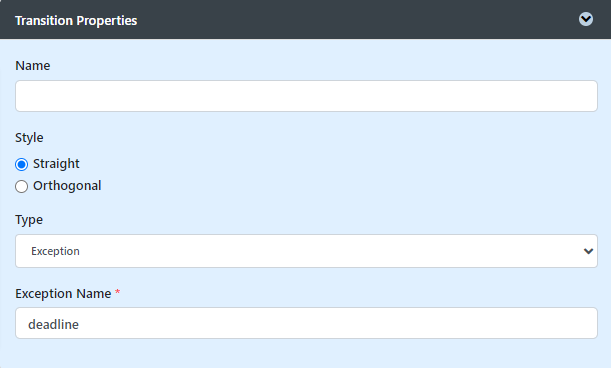

Figure 3: Setting up the Transition as Exception
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
On the transition leading out of the first activity, edit it's properties by matching the Exception name of the Deadline set earlier with the "Expression" field.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

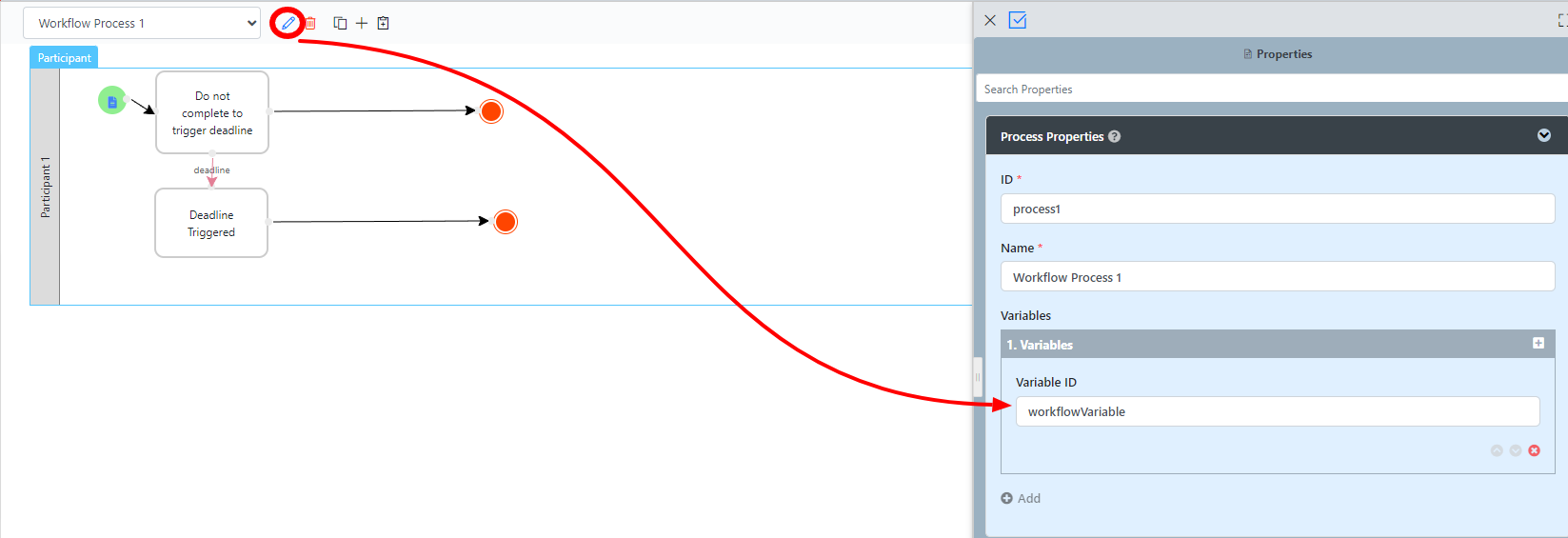

Figure 4: Create a Workflow Variable in the process's properties
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Figure 5: Create a Form with a Date Picker element to set a date value to workflow variable.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

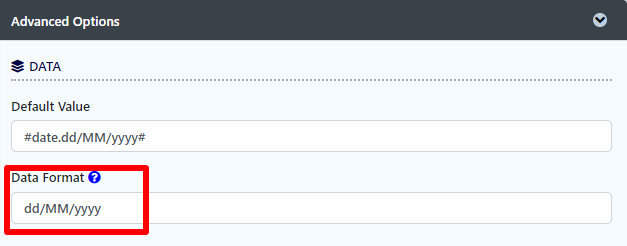

Figure 6: Edit the date picker's properties and set "Data Format" to "dd/MM/yyyy"
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.

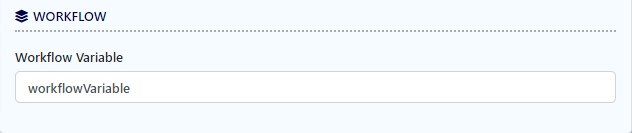

Figure 7: Map the Date Picker's value to the Workflow Variable
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Important Note:
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
The value of "workflowVariable" can be changed/manipulated as many times as needed to reflect the use case of your process design so long that the deadline has NOT been executed before.
License Error
The license of the app Translations for Confluence (formerly Language Macros) has expired. Please renew the license.
Sample App:
