Introduction
The Enhanced SOAP Tool allows user to save the request and response payload of a call to webservice for integration purpose. This plugin is an enhanced version of the existing SOAP Tool.
Plugin Info
Plugin Available in the Bundle:
- Enhanced SOAP Tool
This plugin bundle is compatible with Joget DX 7 and onwards.
Expected Outcome
To be able to save the request and response payload, which is an added feature to SOAP Tool.

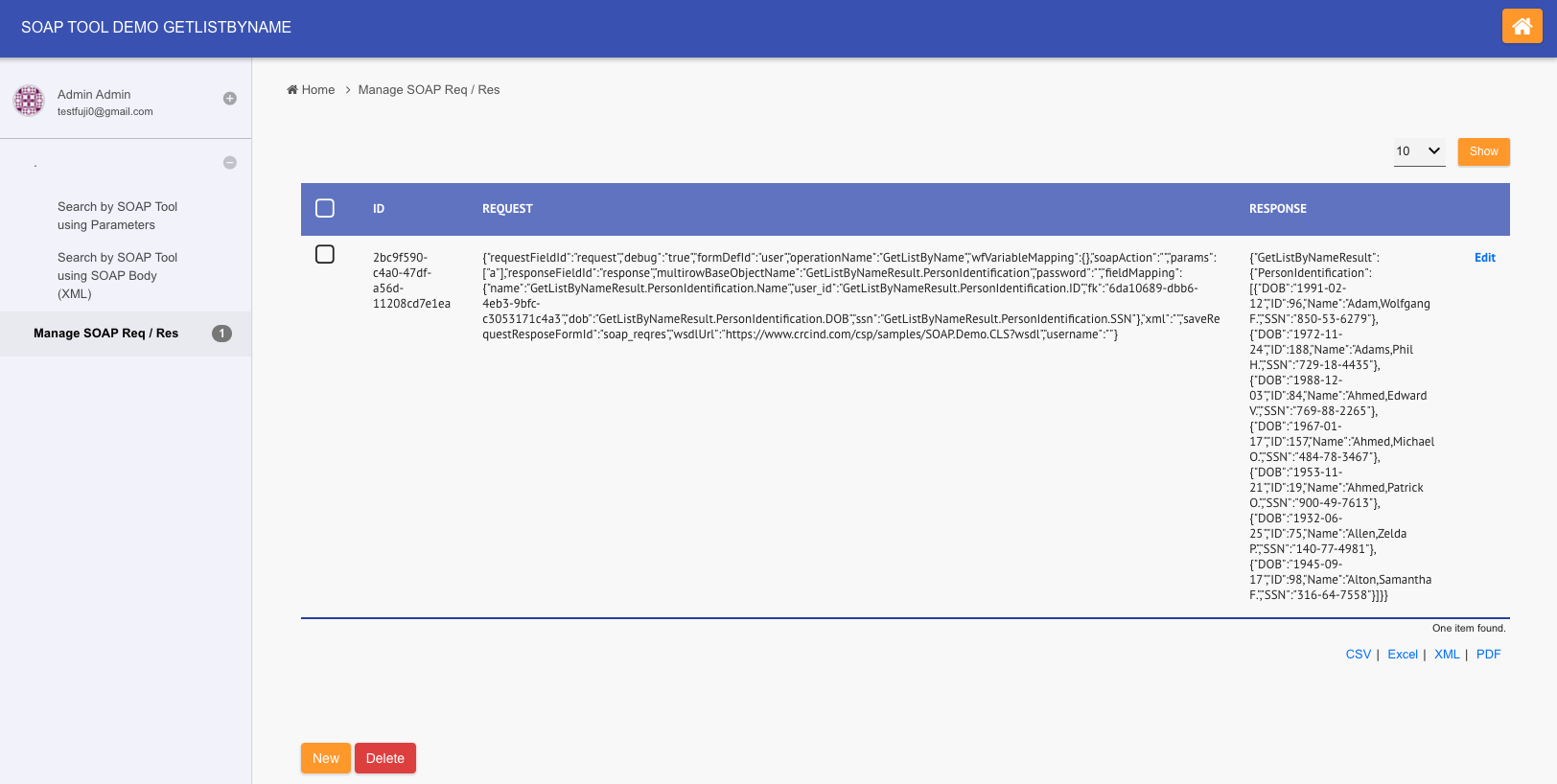

Figure 1: Request and Response Payload Saved
Getting Started
Steps
Where to get the plugin
- Please visit https://github.com/jogetoss/enhanced-soap-tool for the plugin's source code.
- You can find the latest release at https://github.com/jogetoss/enhanced-soap-tool/releases.
- Upload the plugin to your Joget by navigating to Settings > Manage Plugins > Upload Plugin as admin.
How to install and use the plugin
1. Download the Demo App. Go to Joget Home or All Apps and click on Import App to import the downloaded demo app (refer to another KB - Import Joget App for more details).
2. Go to Search by SOAP Tool using Parameters. Enter "a" to the Name field for this demo.

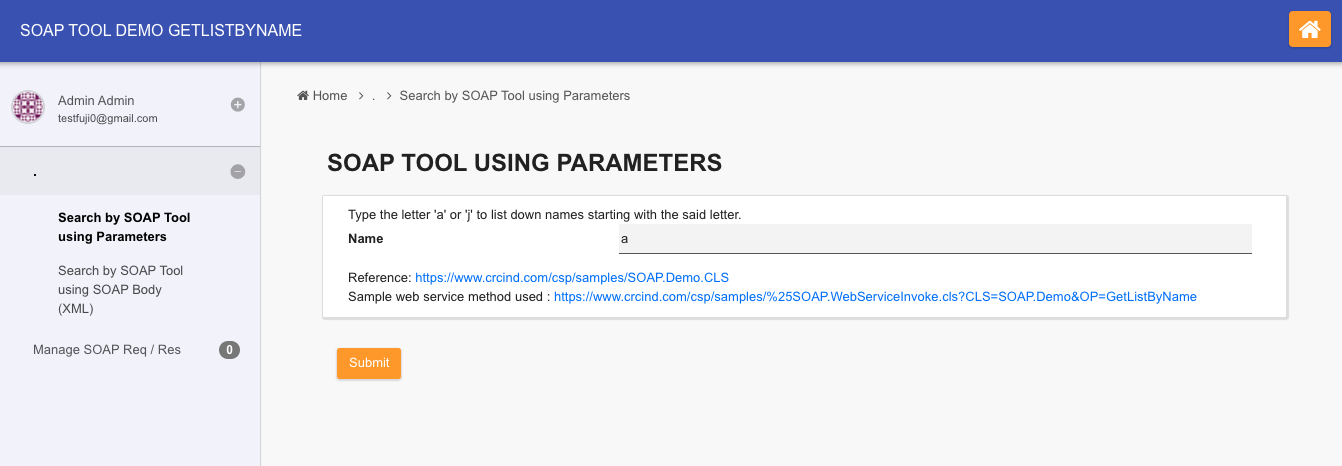

Figure 2: Soap Tool using Parameters
3. You can see that the SOAP request has been made.

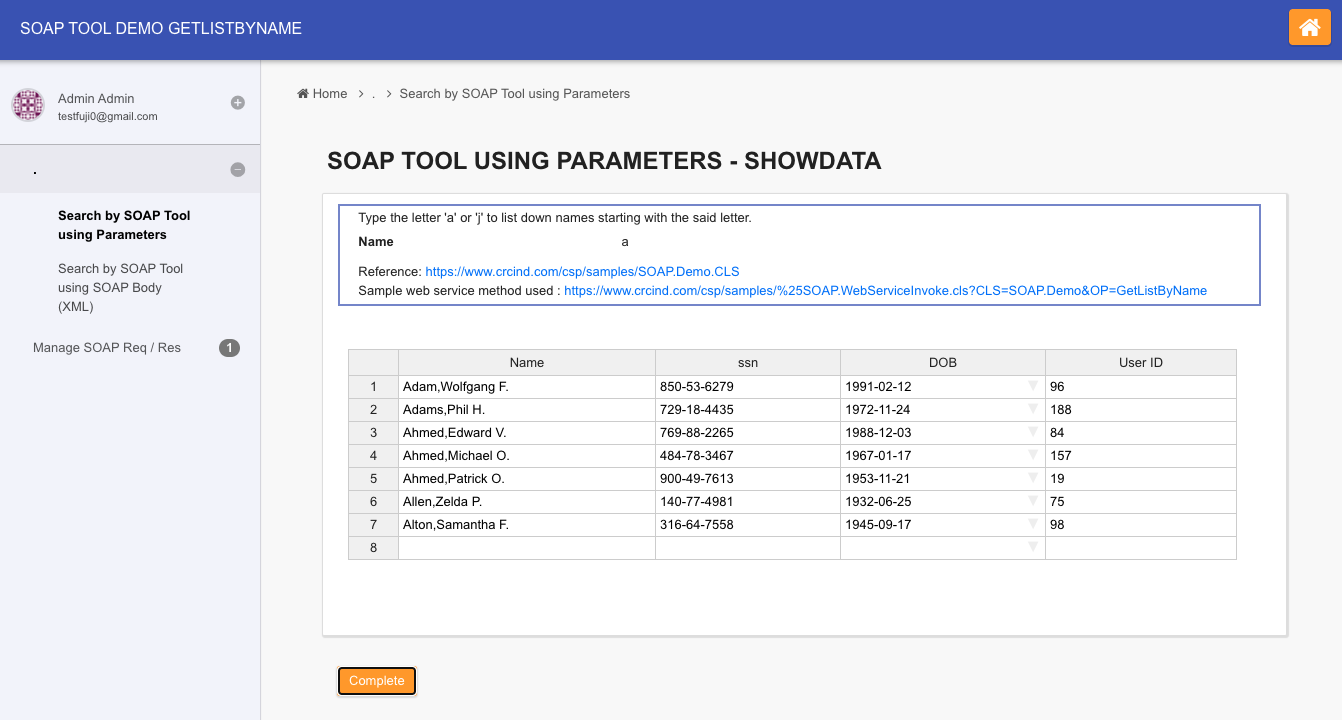

Figure 3: Soap Tool using Parameters - Showdata
4. Now to go Manage SOAP Req / Res. You can see that the request and response payload has been saved to another table.
Figure 4: Request and Response Payload Saved
5. The two figure below shows the table that the request and response payload has been saved to. You can refer to Enhanced SOAP Tool Properties for the configurations.

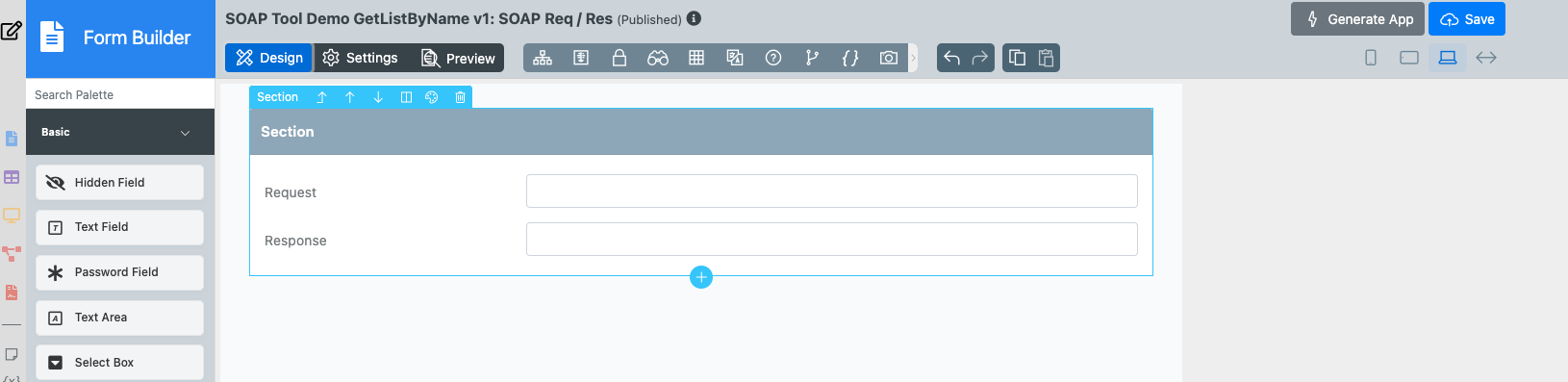

Figure 5: Request and Response Form

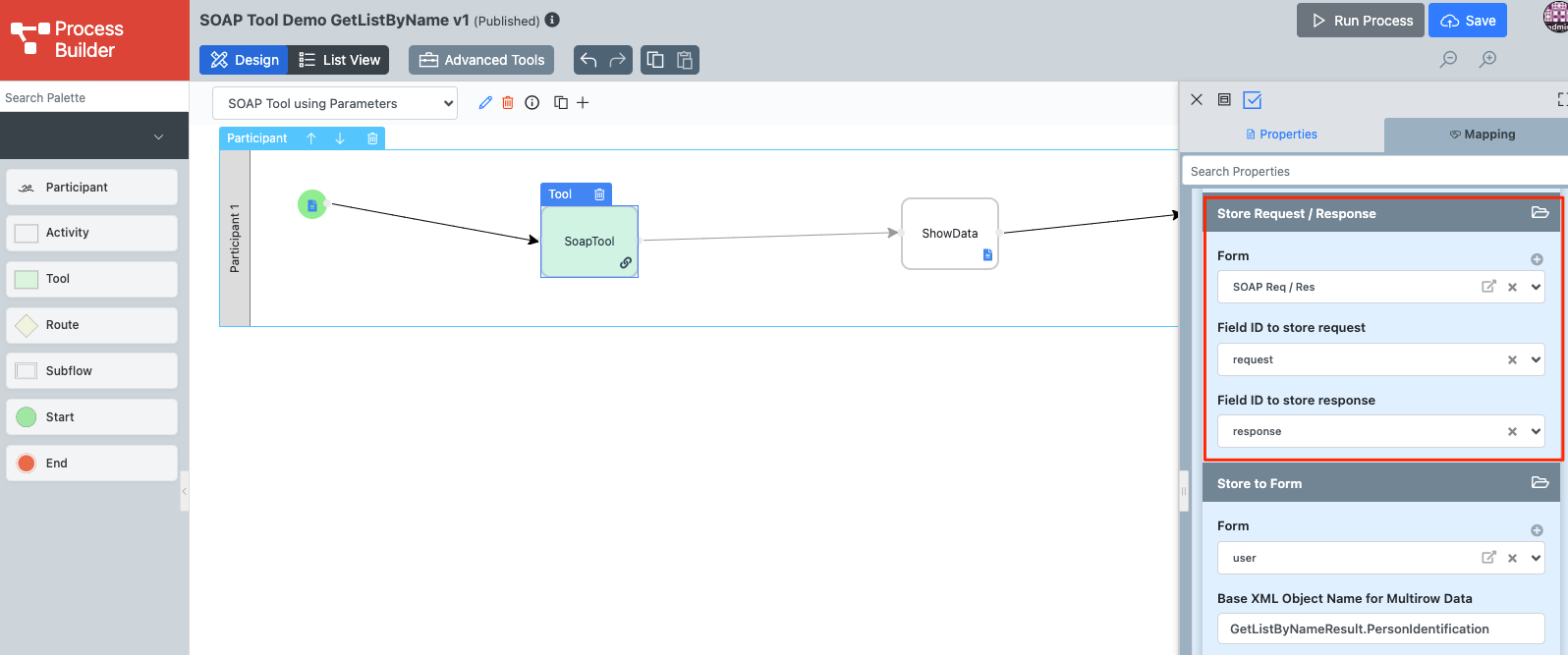

Figure 6: Process Builder - Soap Tool Configurations
Enhanced SOAP Tool Properties
The properties are mostly similar to SOAP Tool, the only added section is Store Request / Response.
Configure SOAP

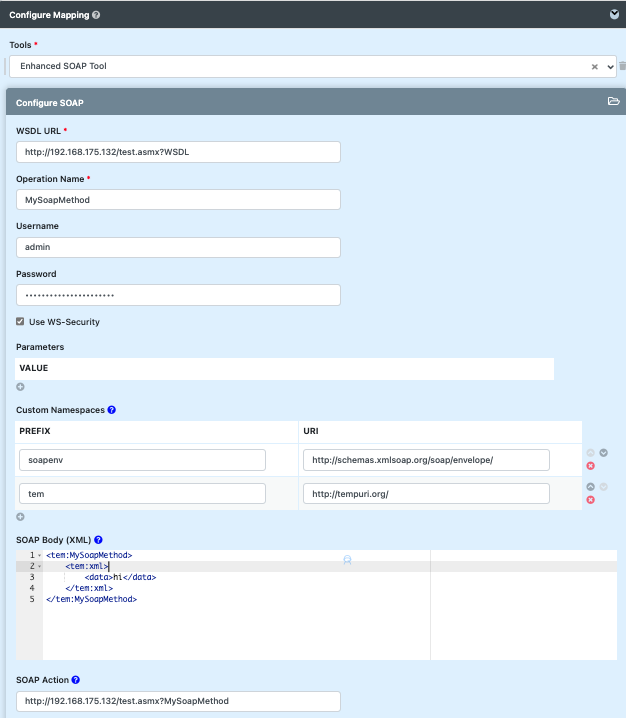

Figure 7: Configure SOAP Properties
| Name | Description |
|---|---|
| WSDL URL | Webservice WSDL URL to be called. |
| Operation Name | Operation Name |
| Username | Credential - Username |
| Password | Credential - Password |
| Use WS-Security | If checked, WSS authentication header will be sent with the Username and Password filled above. |
| Parameters | Values in sequence order of the operation parameters. |
SOAP Body (XML) | The XML content of <soap:Body> tag. Parameters setting is ignored when SOAP Body is used. |
SOAP Action | SOAP Action is required when SOAP Body is used and SOAP version is 1.1 |
Store Request / Response

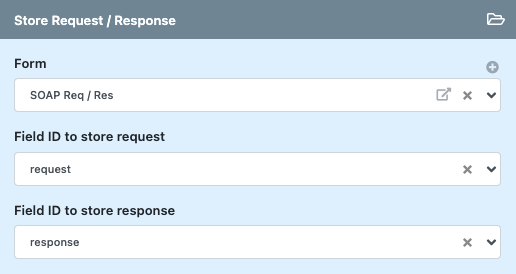

Figure 8: Store Request / Response
| Name | Description |
|---|---|
| Form | The form to store the request and reponse data. |
| Field ID to store request | The field ID of the form to store the request data. |
| Field ID to store response | The field ID of the form to store the response data. |
Store To Form

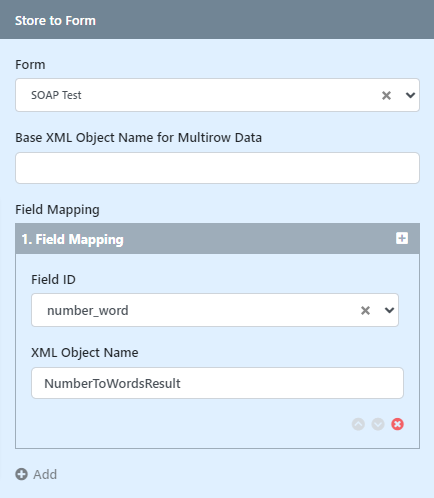

Figure 9: Store To Form Properties
| Name | Description | ||||||
|---|---|---|---|---|---|---|---|
| Form | Target form to store data. | ||||||
| Base XML Object Name for Multirow Data | If returned data is intended to an array / multirow data, define the base path of the array. | ||||||
| Field Mapping |
|
Store To Workflow Variable

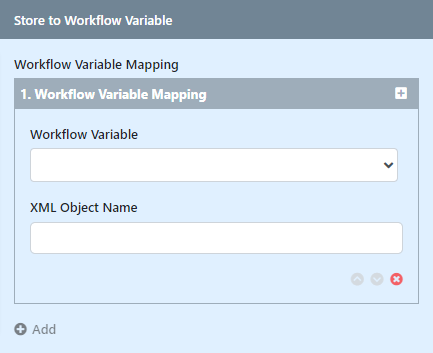

Figure 10: Store To Workflow Variable Properties
| Name | Description | ||||||
|---|---|---|---|---|---|---|---|
| Workflow Variable Mapping |
|
Advanced
Figure 11: Advanced Properties
| Name | Description |
|---|---|
| Debug Mode | When checked, debug messages will be printed out in the server log for troubleshooting purpose. In the server log, you will observe returned formatted data as the following: INFO 20 Feb 2020 02:14:56 org.joget.plugin.enterprise.SoapTool
- {"NumberToWordsResult":"six hundred and seventy eight "}
|
Information
Empty Table on Invalid Queries.
If a user submits a query that does not return any results (e.g., searching for a non-existent name or ID), the system will display an empty table.
If a user submits a query that does not return any results (e.g., searching for a non-existent name or ID), the system will display an empty table.

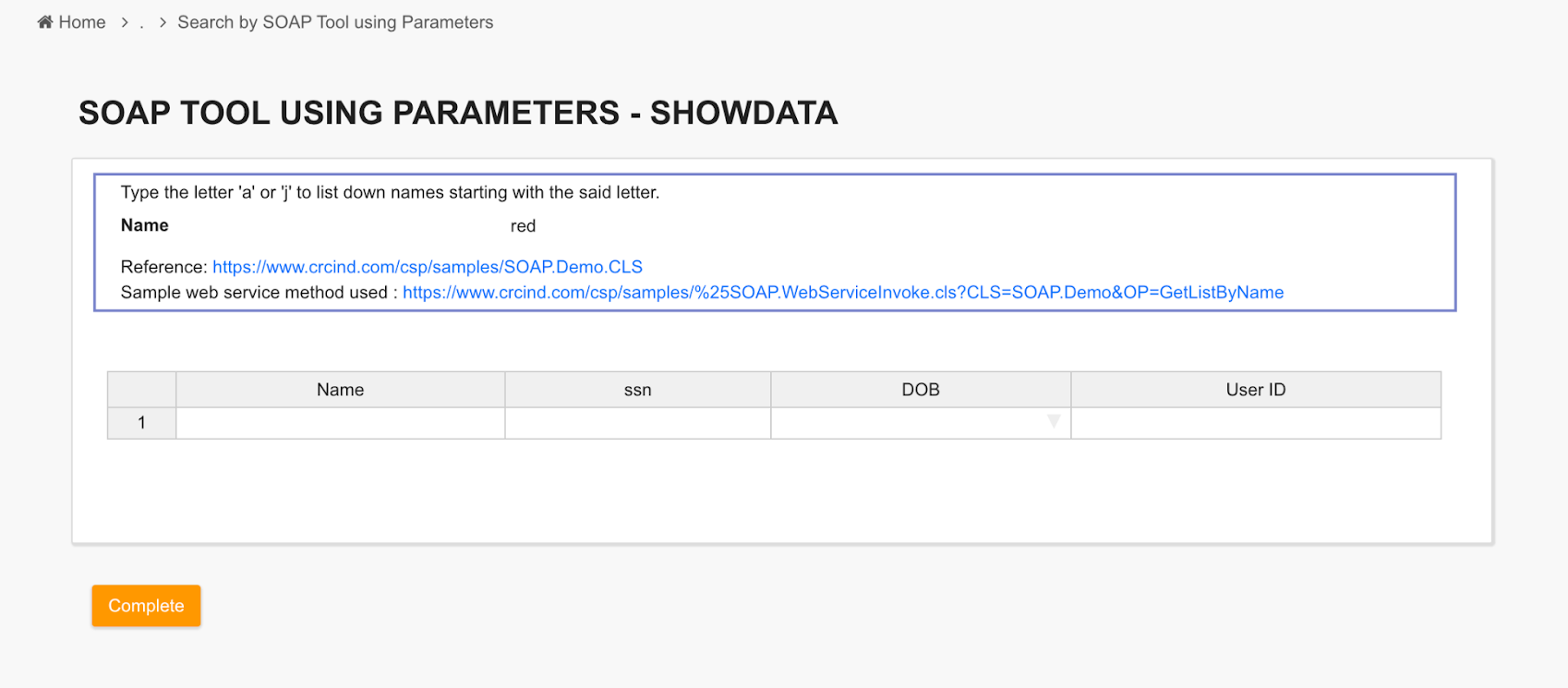

Figure 11: Invalid Query Response.
Non-Saving of Empty Responses
In cases where the query results in no matching data:
- No data is saved to the backend or within the application's forms.
- This ensures that the system's integrity and data accuracy are maintained, preventing the storage of empty or irrelevant response data.
