Introduction

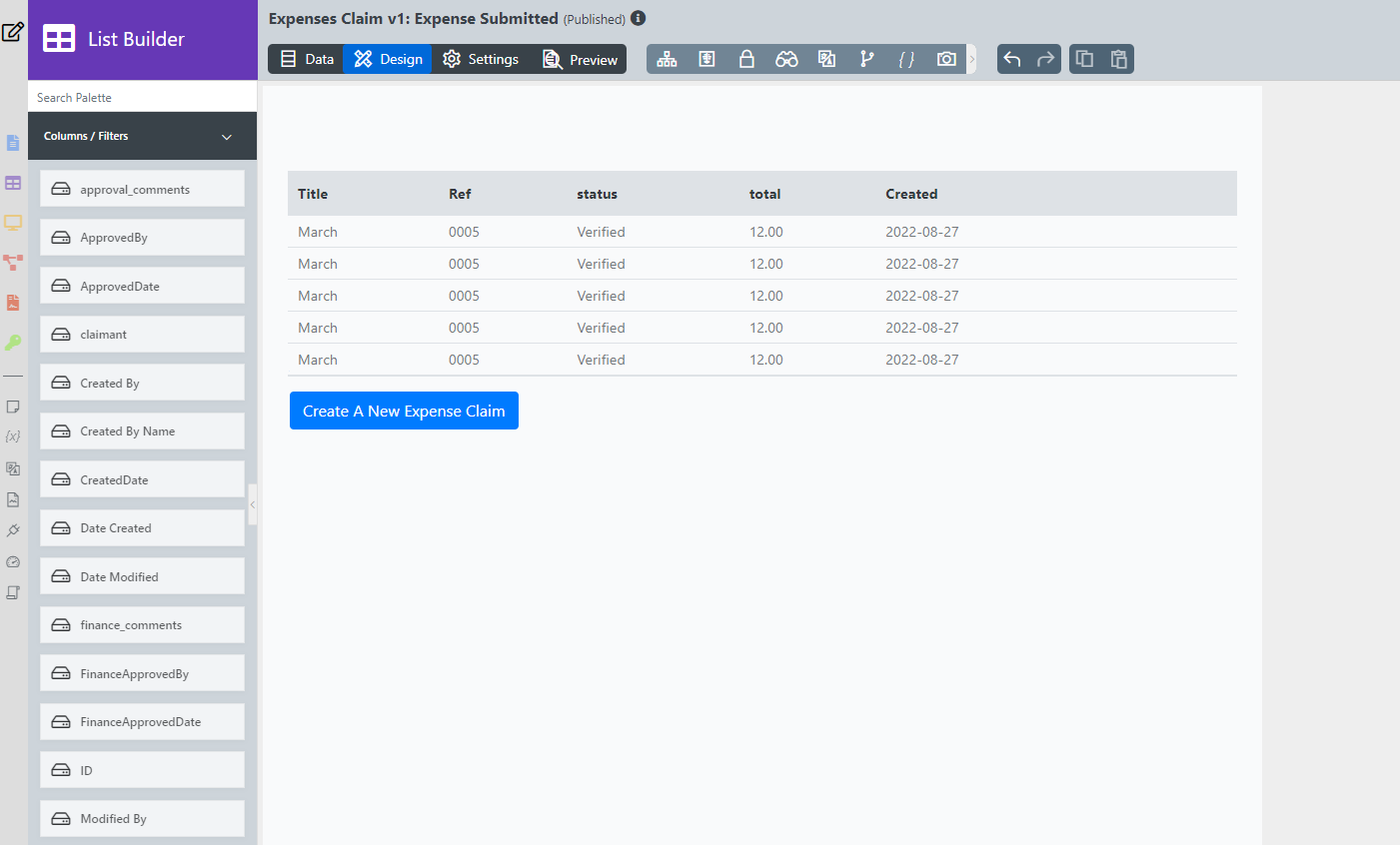

List Builder offers an intuitive way of constructing a list of cumulative field values from all workflow process instances associated with the selected form. In other words, any time a user fills out a form, a row is added/updated in the database table associated with that form, and the data is presented in a list.
Columns can be rearranged be dragging it across other columns in the List.

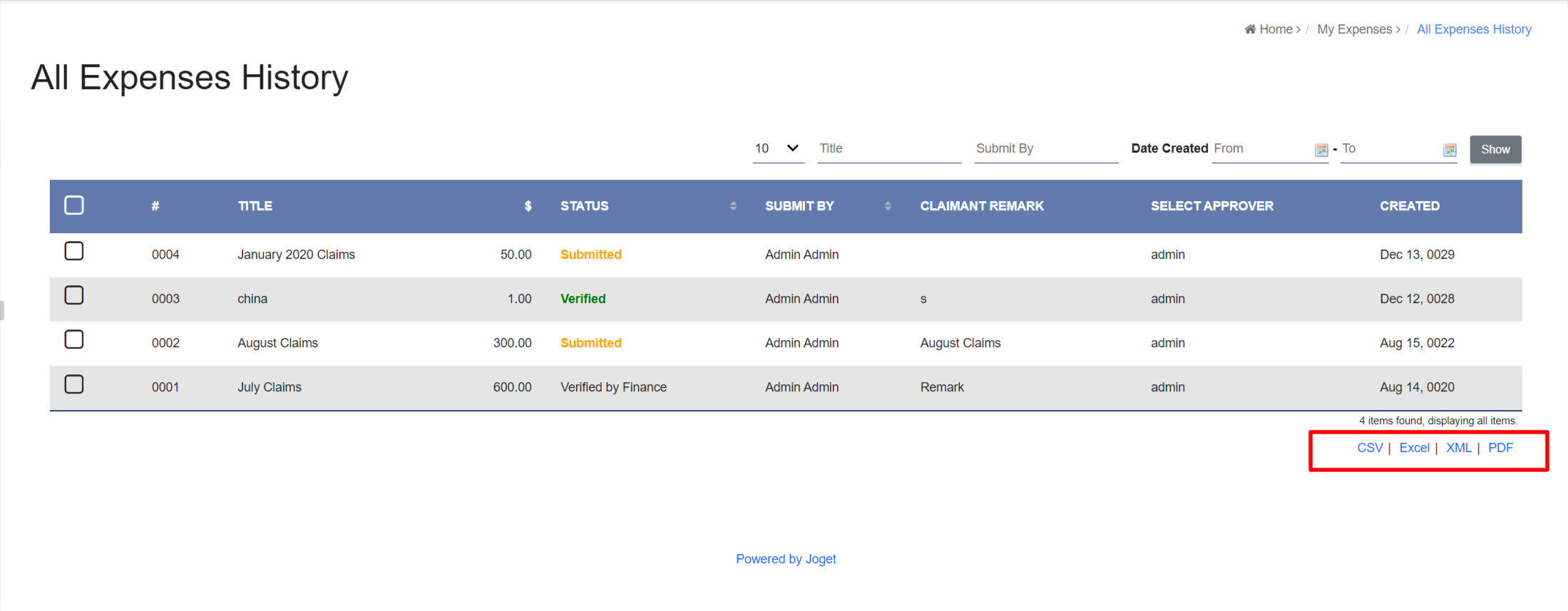

You can export all the records in the List to CSV, Excel, XML, and PDF by clicking on the links at the bottom of any list.
Keyboard Shortcut Keys
| Shortcut Key | Description |
|---|---|
| Ctrl + S | Save Builder |
| Ctrl + C | Copy Element |
| Ctrl + V | Paste Element |
| Ctrl + Z | Undo |
| Ctrl + Shift + Z | Redo |
List Properties

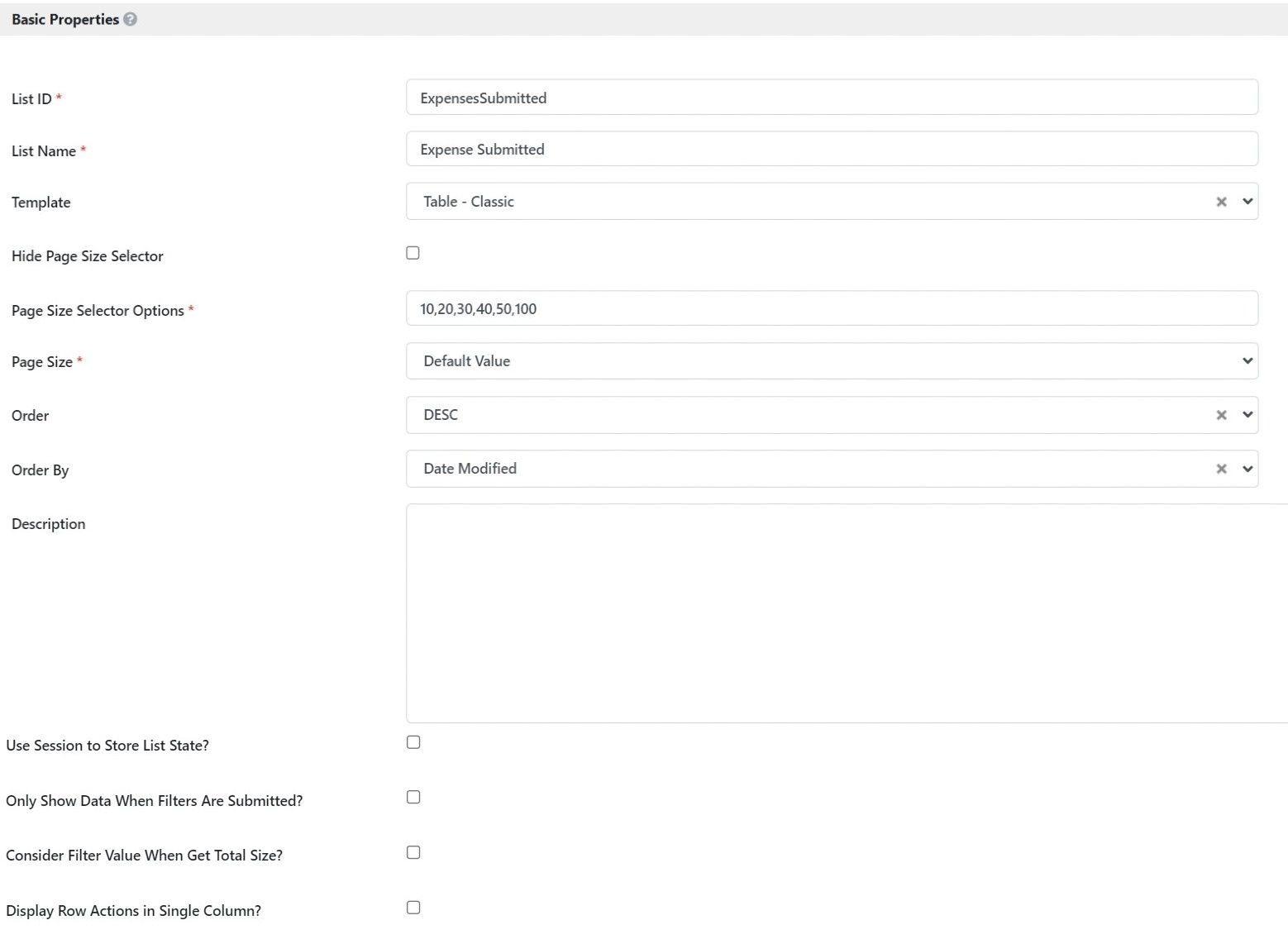

Configure List
| Name | Description |
|---|---|
| List ID | List unique id. List will use this id in the URL for the list if the Custom ID is empty. Mandatory Field. |
| List Name | List name. Mandatory Field. |
| Template |
|
| Hide Page Size Selector | Hides the page size selector when selected. |
| Page Size Selector Options | Shows the options of the page size to be shown. Example(10,20,30,40,50,100) |
| Page Size | Page size is a select-box containing the values added in the Page Size Selector Options. |
| Order |
|
| Order By | Column to be sorted by. |
| Description | Description of the list. |
| Use Session to store List State | Use Session to store List State. |
| Only Show Data When Filters Are submitted? | Hides all data until filters are submitted. |
Consider Filter Value When Get Total Size? | Consider Filter Value When Get Total Size. |
| Display Row Actions Single Column | Display Row Actions Single Column. |

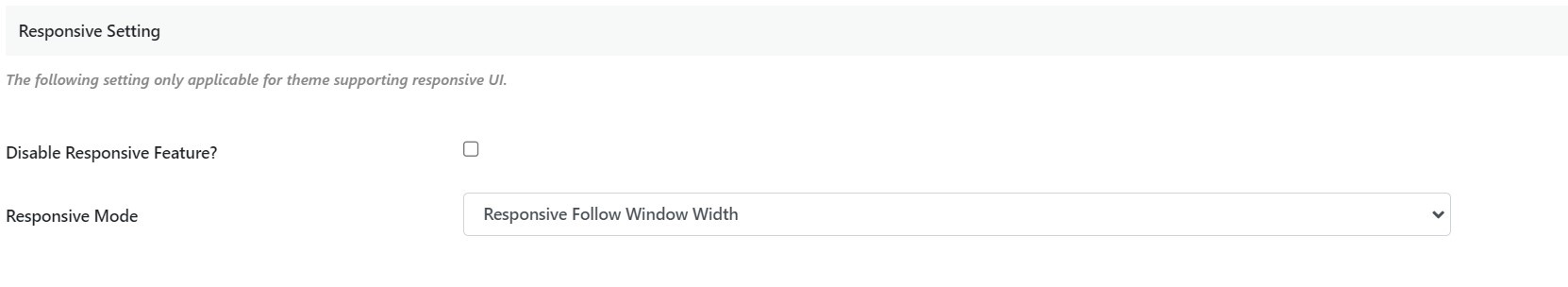

Responsive Settings
| Name | Description |
|---|---|
| Disable Responsive Feature | Disables Responsive Feature only in themes supporting responsive UI. |
| Responsive Mode |
|
Usages
This particular section list elements that are making use of lists created using the list Builder.UI Element
Form Element
Advance Tools
Demo Apps, Tutorial and Plugins from Joget Marketplace
Do try out the many free apps, tutorials and plugins for Joget List elements.
