Introduction

The Simple Tensorflow AI Decision plugin allows one to map it on a process route, execute a pre-trained Tensorflow AI model and use the output result for decision making.

The following are the list of required items before using Simple Tensorflow AI Decision:

an exported frozen model of Tensorflow AI model file in .pb format
the list of Input Names and each of their Data Type
the list of Output Names and each of their Data Type
Dictionary file in .csv format (if any)

Please take note that the Decision Tool Plugin will take precedence over existing conventional conditional setup in the Process Builder

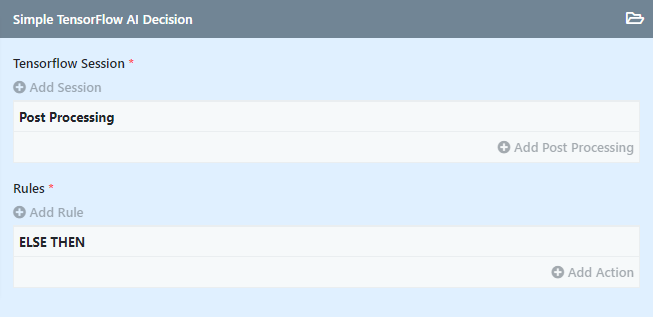

Simple Tensorflow AI Decision Properties

Simple Tensorflow AI Decision

Name

Description

Tensorflow Session

The Tensorflow Session properties are defined here:

Sub-element

Description

Add Session

Add a Session. see Add Session properties below.

Add Post Processing

When hovering the mouse over the Add Post Processing, a list of Post Processing types will be available as shown below:

BeanShell Script - see Add Post Processing - BeanShell Script properties
Image Detection Boxes - see Add Post Processing - Image Detection Boxes properties
Values to Labels - see Add Post Processing - Detected Values to Labels properties
Euclidean Distance - see Add Post Processing - Euclidean Distance properties
Probabilities to Labels - see Add Post Processing - Probabilities to Labels properties

Rules

The Rules properties are defined here:

Sub-element	Description
Add Rule	Add a Rule. see Add Rule properties below
Add Action	Adds an Action within the ELSE THEN statement. see Add Action properties below

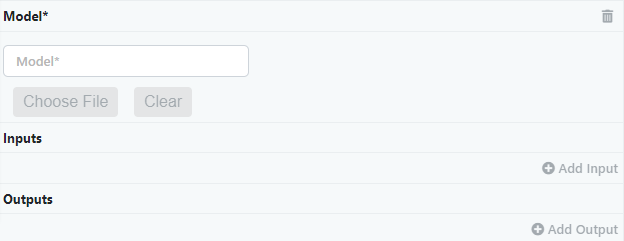

Add Session

Sub-element	Description
Model	Choose File - Select an AI model to run Clear - clear selected AI model
	Delete Session
Input Output	When hovering the mouse over the Add Input, a list of Pre-Processing Input types will be available as shown below: BeanShell Script - see Add Input - Beanshell Script properties Image - see Add Input - Image properties Boolean - see Add Input - Boolean properties Audio MelSpectogram - see Add Input - Audio Melspectogram properties File (Bytes) - see Add File(Bytes) - File Bytes properties Numbers - see Add Input - Numbers properties Text - see Add Input - Text properties
Add Output	see Add Output properties

Add Input

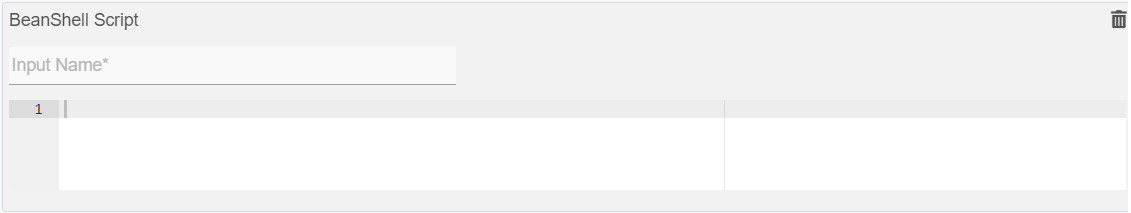

BeanShell Script

Sub-element	Description
Input Name	Defined Input Tensor
Script	Script in Java. Please see Bean Shell Programming Guide for code example.
	Delete Input

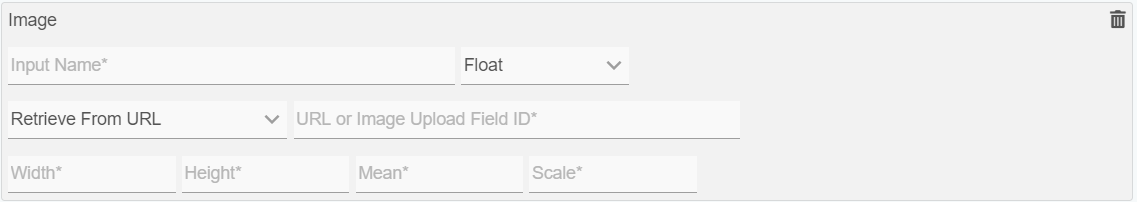

Sub-element	Description
Input Name	Defined Input Tensor.
Type	Float Double Integer UInt8 Long
File Source	Retrieve from URL <list of all available Forms>
URL or Image Upload Field ID	URL input if Retrieve from URL was selected as the File Source Image Upload Field ID if a Form was selected as the File Source
Width	Width in Integer.
Height	Height in Integer.
Mean	Mean in Integer Note If its not defined, set to 1
Scale	Scale in Integer Note If its not defined, set to 1
	Delete Input

Boolean

Sub-element	Description
Input Name	Defined Input Tensor
Type	True False
	Delete Input

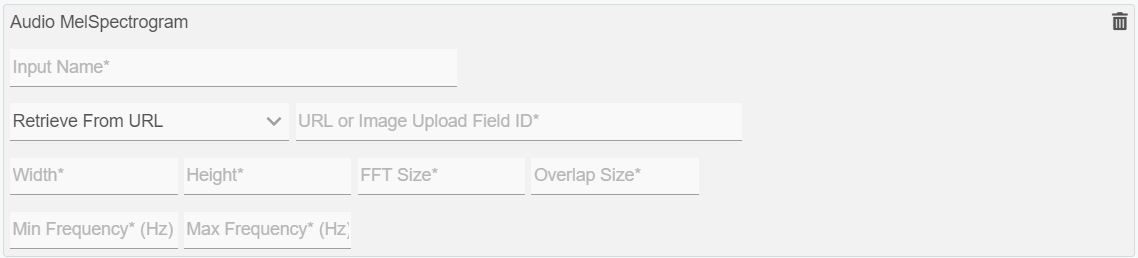

Audio MelSpectrogram

Sub-element	Description
Input Name	Defined Input Tensor
File Source	Retrieve from URL <list of all available Forms>
URL or File Upload Field ID	URL input if Retrieve from URL was selected as the File Source File Upload Field ID if a Form was selected as the File Source
Width	Width in Integer
Height	Height in Integer
FFT Size	FFT Size in Integer
Overlap Size	Overlap Size in Integer
Min Frequency (Hz)	Minimum Frequency in (Hz)
Max Frequency (Hz)	Maximum Frequency in (Hz)
	Delete Input

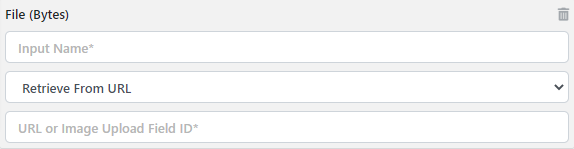

File(Bytes)

Name	Description
Input Name	Defined Input Tensor
File Source	Retrieve from URL <list of all available Forms in this app>
URL or File Upload Field ID	URL input if Retrieve from URL was selected as the File Source File Upload Field ID if a Form was selected as the File Source
	Delete Input

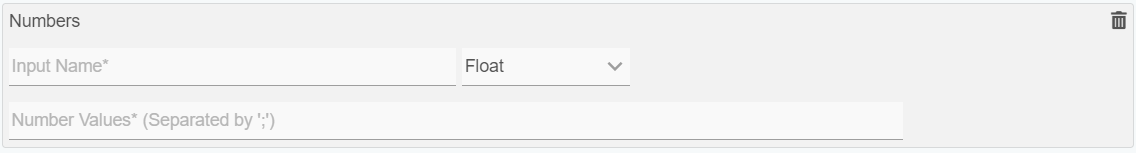

Numbers

Sub-element	Description
Input Name	Defined Input Tensor
Type	Float Double Integer UInt8 Long
Number Values (Separated by)	separate number values by ;
	Delete Input

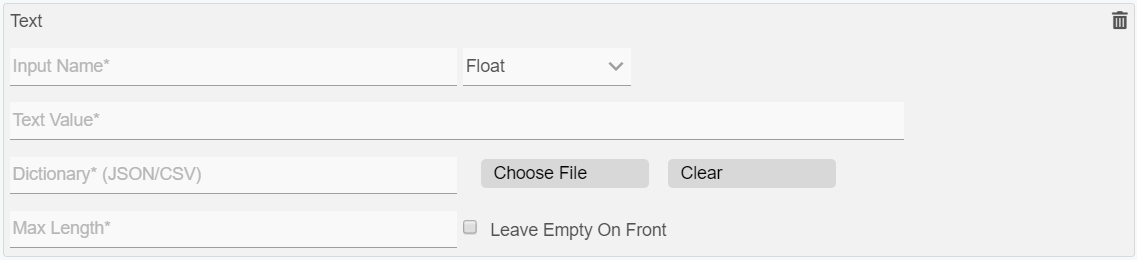

Text

Sub-element	Description
Input Name	Defined Input Tensor
Type	Float Double Integer UInt8 Long
Text Value	The text value inputted to be inserted into the Tensor. Can use Hash Variable.
Dictionary (JSON/CSV)	Dictionary in JSON or CSV format
Max Length	Maximum Length
Leave Empty In Front	check to leave the front of the Value as Empty (or whatever value based on the dictionary)
	Delete Input

Add Output

Sub-element	Description
Output Name	Defined Output Tensor
Temporary Variable Name	The Output Tensor Value will be inserted into this user-defined Temporary Variable to be later used during Post-Processing
	Delete Output

Add Post Processing

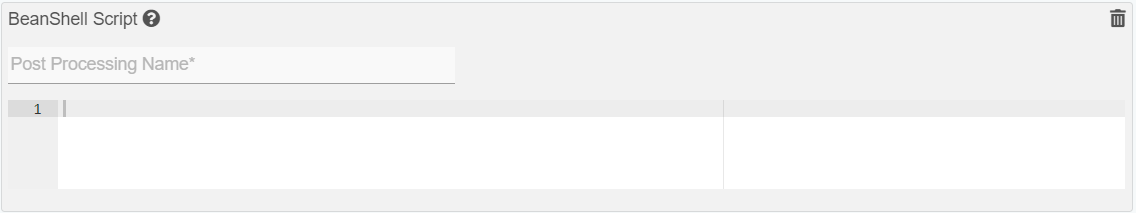

BeanShell Script

Sub-element

Description

Post Processing Name

User-defined variable. Can be used as a Variable in the Rules

Script

Script in Java. Please see Bean Shell Programming Guide for code example.

Injected variables available for consumption are:-

String Name
Map tfVariables
Map Variables
Map tempDataHolder

Delete Post-Processing

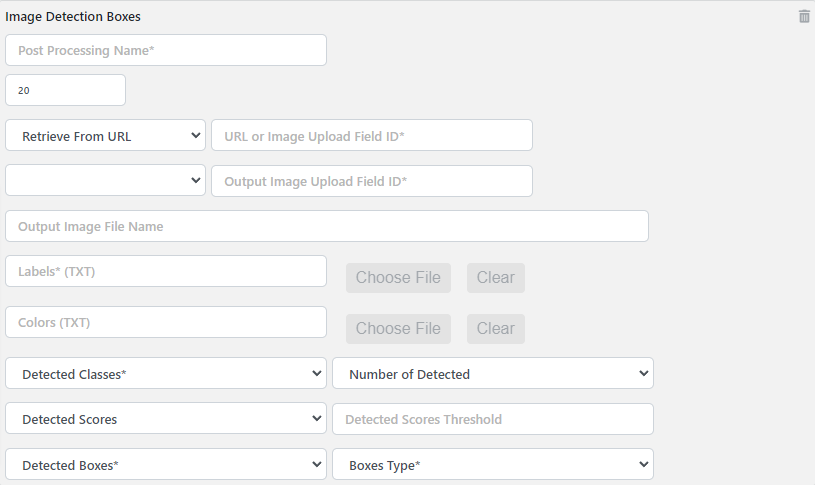

Image Detection Boxes

Name	Description
Post Processing Name	User-defined variable. Can be used as a Variable in the Rules
Font Size (pixel)	The font size of detected labels in pixels.
File Source	Retrieve from URL <list of all available Forms in this app>
URL or Image Upload Field ID	URL input if Retrieve from URL was selected as the File Source File Upload Field ID if a Form was selected as the File Source
File Output Source	Retrieve from URL <list of all available Forms in this app>
Output Image Upload Field ID	URL input if Retrieve from URL was selected as the File Source File Upload Field ID if a Form was selected as the File Source
Output Image File Name	User-defined variable. Name of the output image file.
Labels (TXT)	In this field, upload a .txt file containing the labels of the detected classes
Colors (TXT)	In this field, upload a .txt file containing the labels of the detected classes
Detected Classes	<List of classes detected in from output>
Number of Detected	The number of the classes detected in the input source.
Detected Scores	<List of scores detected from output>
Detected Scores Threshold	set the threshold of the detected scores (e.g 0.01)
Detected Boxes	<List of detected boxes from output>
Boxes Type	Top left Corner (x,y), width & height Top left Corner (y,x), width & height Top left Corner (x,y) & bottom right corner (x,y) Top left Corner (y,x) & bottom right corner (y,x)

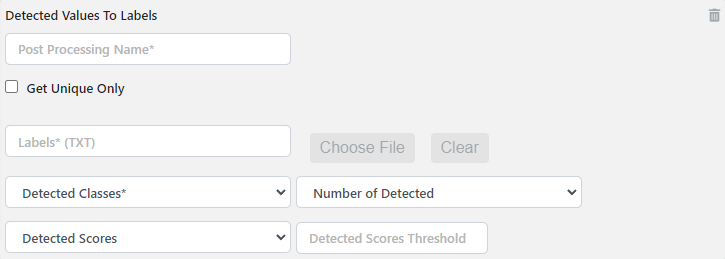

Detected Values to Labels

Sub-element	Description
Post Processing Name	User-defined variable. Can be used as a Variable in the Rules
Get Unique Only	Check to get unique values only.
Labels (TXT)	Dictionary file in .txt format
Detected Classes	<List of classes detected from output>
Number of Detected	The number of the classes detected in the input source.
Detected Scores	<List of scores detected from output>
Detected Scores Threshold	set the threshold of the detected scores (e.g 0.01)
	Delete Post-Processing

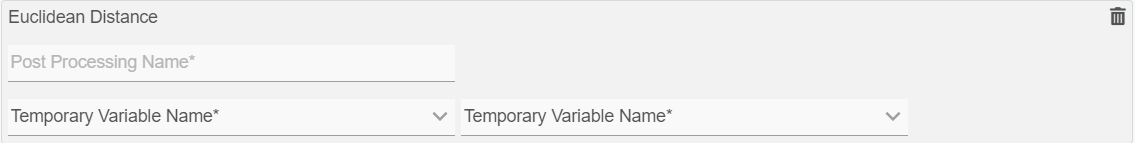

Euclidean Distance

Sub-element	Description
Post-Processing Name	User-defined variable. Can be used as a Variable in the Rules
Temporary Variable Name	List of Temporary Variables from Output
Temporary Variable Name	List of Temporary Variables from Output
	Delete Post-Processing

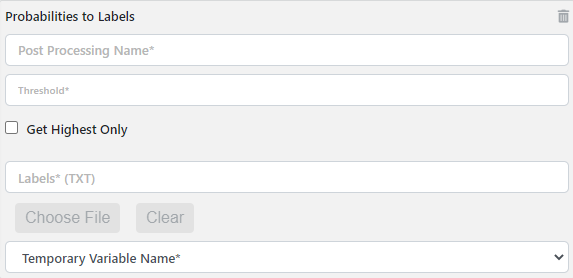

Probabilities to Labels

Sub-element	Description
Post Processing Name	User-defined variable. Can be used as a Variable in the Rules
Threshold	set the Threshold value e.g. 0.01
Get Highest Only	Check to get the highest value only
Labels (TXT)	Dictionary file in .txt format
Temporary Variable Name	List of Temporary Variables from Output
	Delete Post-Processing

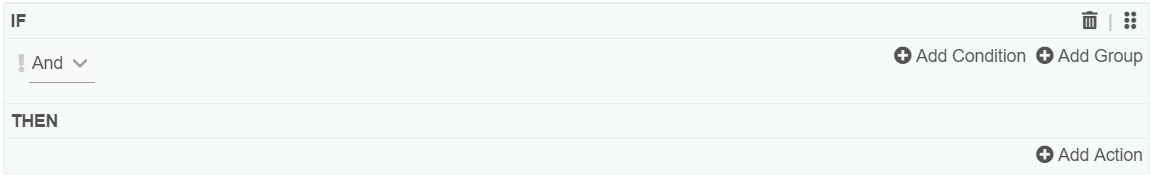

Add Rule

Name	Description
	Toggle between EQUAL and NOT EQUAL
Split Type	AND OR
Add Condition	Adds a Condition within the IF statement. see Add Condition properties below
Add Group	Adds a Group within the IF statement. Properties will be similar in Add Rule properties
	Delete Rule
	Sort - Click and drag to reorder Rule above or below another Rule
Add Action	Adds an Action within the THEN statement.

Add Condition

Name	Description
	Toggle between EQUAL and NOT EQUAL
Variable	User input the variable name. Also accepts the use of Temporary Variable or Post Processing Name
Operation	Equal To Greater Than Greater Than Or Equal To Less Than Less Than Or Equal To Is True Is False Contains List Contains In Regex Match
Value	set the input the value of the Variable
	Delete Condition

Add Action

Name	Description
Type	Transition Workflow Variable
Transition	Will display a selection of all available transitions based on the selected Route inserted as part of the process flow Note This field will be displayed if Transition is selected in the Type field.
Workflow Variable	Will display a selection of all available workflow variables based on the current Process Note This field will be displayed if Workflow Variable is selected in the Type field.
Value	User to input the value of the selected Workflow Variable. Also accepts the use of Temporary Variable or Post Processing Name Note This field will be displayed if Workflow Variable is selected in the Type field.
	Delete Action

Download Sample App

Demo AI - Facial Recognition app:

APP_demo_ai_face_recog-demoApp_noPB.zip

Note: The pre-trained AI model below must be added to this app before ready to use.

Pre-trained AI model:

AI Model Download Link

Note: Please download the AI model here, extract the zip, and add the 20180402-114759.pb file into the app's Resource in the Properties and Export app design menu.

Credits:

Facenet Tensorflow for pre-trained AI model: https://github.com/davidsandberg/facenet

VGGFace2 for the training dataset: https://github.com/ox-vgg/vgg_face2
