Introduction

Process Builder will open up when clicked from the Quick Navigation Bar (See Quick Navigator). Process Builder is one of the highlights of Joget Workflow v5 where it allows one to design processes on the browser itself without the need of installing any additional components. The Process Builder allows one to design process(es) for the Joget Workflow App in an easy drag-and-drop manner.

设计流程 将打开 流程设计器。流程设计器是Joget Workflow v5的亮点之一，它允许在浏览器本身设计流程，而不需要安装任何额外的组件。

所述 进程生成器 允许人们以容易拖和下降的方式设计为工作流Joget应用进程（ES）。

Figure 1: Process Builder Design For Expenses Claims App

New Feature

In Joget DX8 Process Builder, the following are new features: List View & Mapping Tab

List View

List View is a new feature in Joget DX8. List View allows one to view all the elements that have been placed inside the Process Builder, while also letting one to configure the properties to each of the element inside the process.

Figure 2: Process Builder List View For Expenses Claims App

Mapping Tab

Mapping tab is a new feature in Joget DX8. The feature is integrated into the Process Builder, letting one to configure the mappings of the elements inside a process within the same screen, instead of a separate configuration screens in previous versions.

Figure 3: Mapping tab for a participant mapping

Elements available

元素可用

Participants

参与者

The Participant node is used to declare a new participant swimlane to represent a role/person/entity (e.g. Claimant). Please see Map Participants to Users for more information about the mappings.

“ 参与者”节点用于声明新的参与者泳道以表示角色/人员/实体（例如索赔人）。请参阅将参与者映射到用户以获取有关映射的更多信息。

Name 名称	Description 描述
ID	Participant ID 参与者ID
Name 名称	Participant Name 参与者名称

Activity

活动

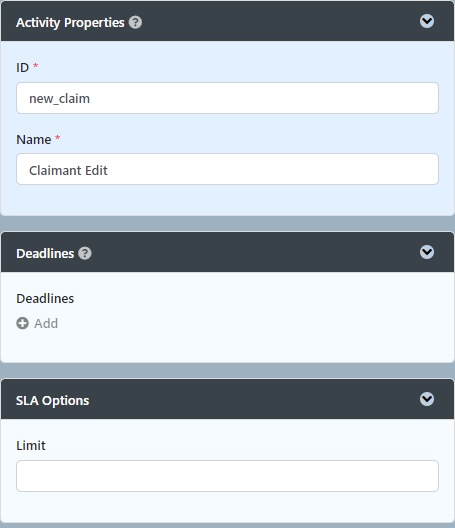

Activity node is used to be mapped to Form, to be used to interact with human participant, as part of the process flow. Please see Map Activities to Forms for more information about the mappings.

活动节点用于映射到Form，用于与人员参与者进行交互，作为流程的一部分。有关映射的更多信息，请参阅将活动映射到表单。

Name 名称	Description 描述
ID	Activity ID 活动ID
Name 名称	Activity Name 活动名称
Deadlines 截止日期	Multiple Deadlines can be set for each activity. Learn about Deadlines and Escalations. 可以为每个活动设置多个截止日期。了解截止日期和上报。
Limit 限制	SLA Limit for the activity. Number is expected in this field. SLA活动限制。预计数量在这个领域。

Tools

工具

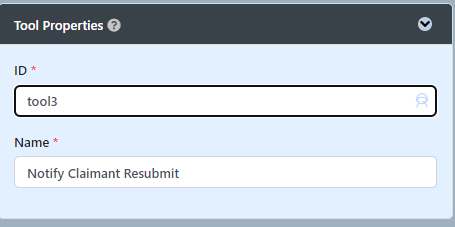

Tool node is used to be mapped to Process Tool plugin, to trigger/achieve certain functionality programmatically, as part of the process flow. Please see Map Tools to Plugins for more information about the mappings.

工具节点用于映射到流程工具插件，作为流程的一部分，以编程方式触发/实现某些功能。有关映射的更多信息，请参阅将工具映射到插件。

Name 名称	Description 描述
ID	Tool ID 工具ID
Name 名称	Tool Name 工具名称

Route

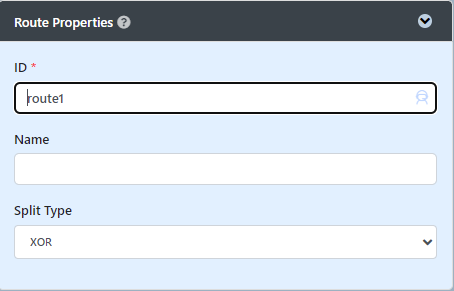

Route node is used to determine the flow of the process flow.

Route节点用于确定流程的流程。

Name 名称	Description 描述
ID	Route ID 路由ID
Name 名称	Route Name 路线名称
Join Type 加入类型	Incoming transition treatment type. 传入转换处理类型。
Split Type 拆分类型	Outgoing transition treatment type. 外出过渡治疗类型。

Subflow & Deadlines

子流程

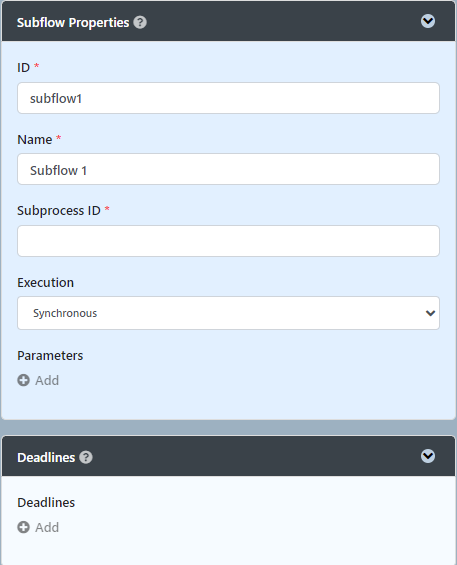

Subflow node is used to trigger the start of another process under the same App.

子流程节点用于触发同一App下另一个进程的启动。

Name 名称	Description 描述
ID	Subflow ID 子流ID
Name 名称	Subflow Name 子流名称
Subprocess ID 子进程ID	Process ID of the Subflow Subflow的进程ID
Execution 执行	Synchronous or Asynchronous execution. 同步或异步执行。
Parameters 参数	Workflow variable(s) to be passed over to the Subflow. 要传递给子流的工作流变量。
Deadlines 截止日期	Multiple Deadlines can be set. This is only applicable when Subflow is set to Asynchronous execution. 可以设置多个截止日期。这只适用于Subflow设置为异步执行。

Transition

Transitions are used to connect the nodes in a process.

Name	Description
Name	Transition name
Style	Transition style
Type	Transition type

Start

启动

Start node denotes the start of the process flow.

开始节点表示流程的开始。

End

End node denotes the end of the process flow.

End节点表示流程结束。
